Pure sine wave output
Protecting precision electronics, ensuring stable power supply, smoother motor operation, and extended equipment life. Appliances operate under ideal waveforms, reducing stress on internal components.
Skip to product information
INQUIRY

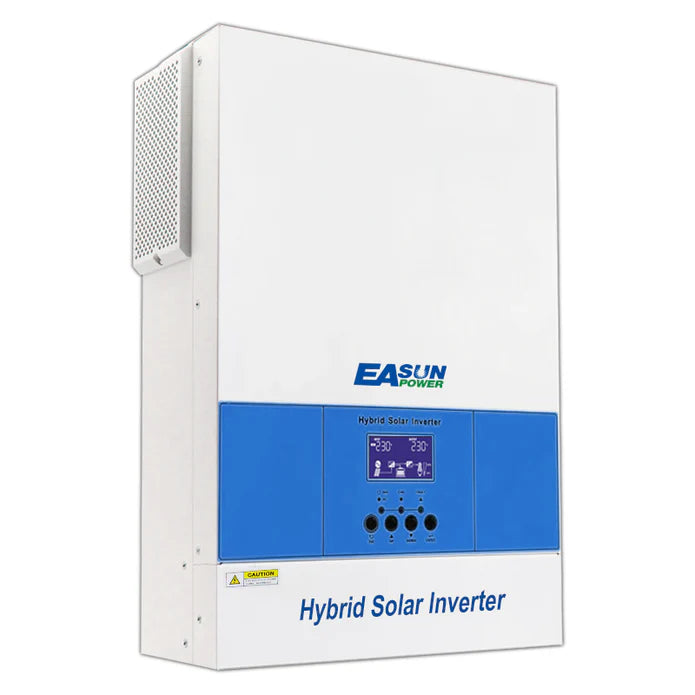

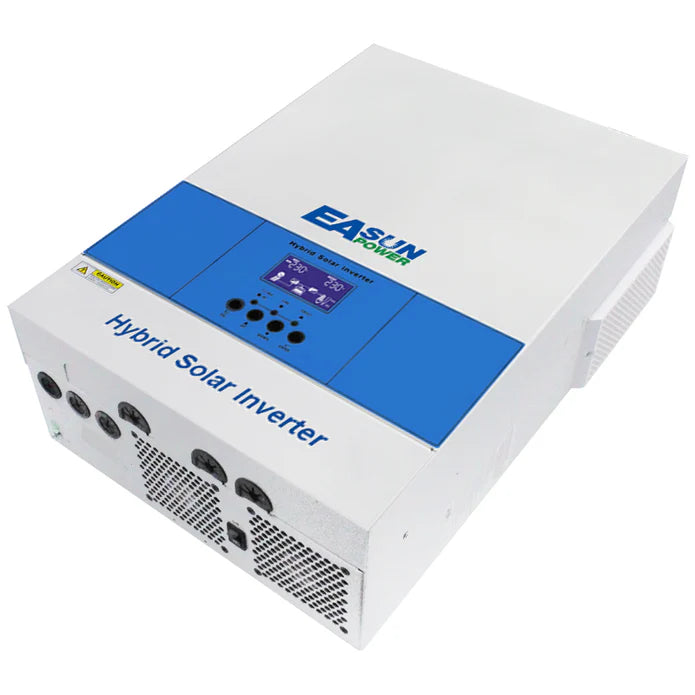

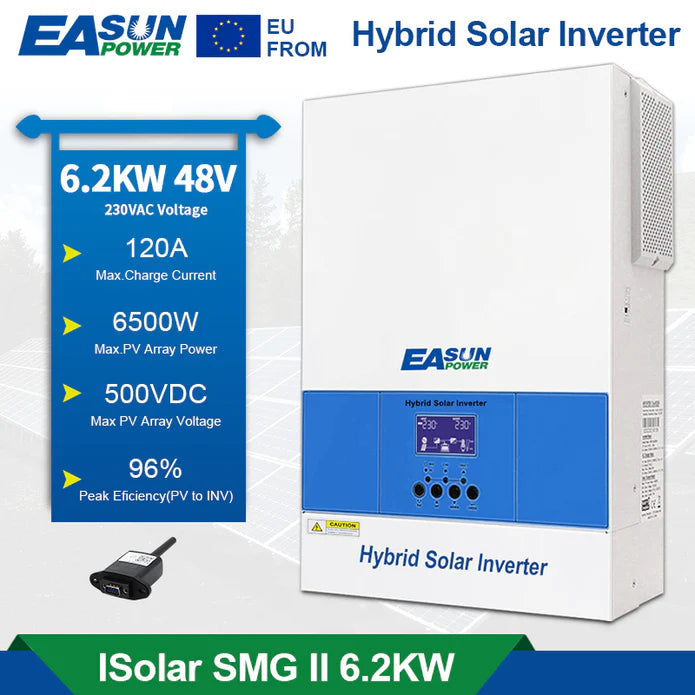

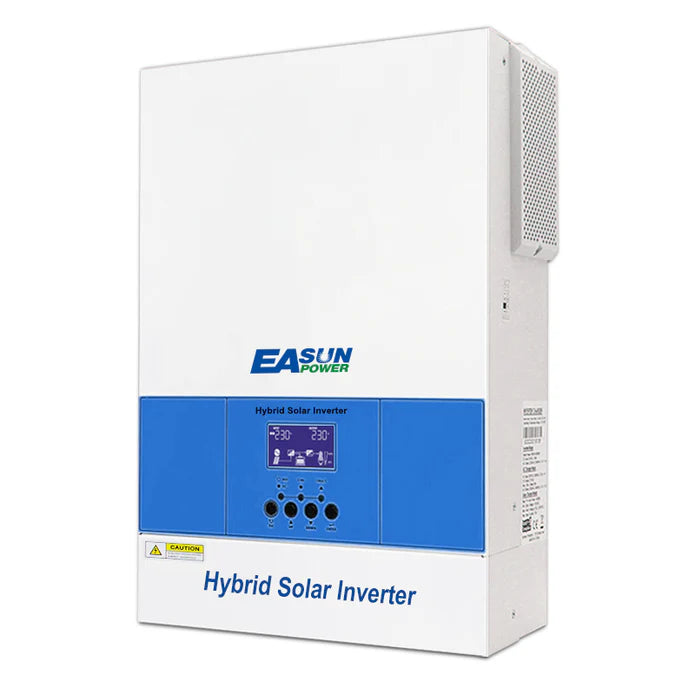

EASUN 6.2KW Off Grid Inverter Build-in MPPT 120A With Wifi Accept No Battery Work No Parallel

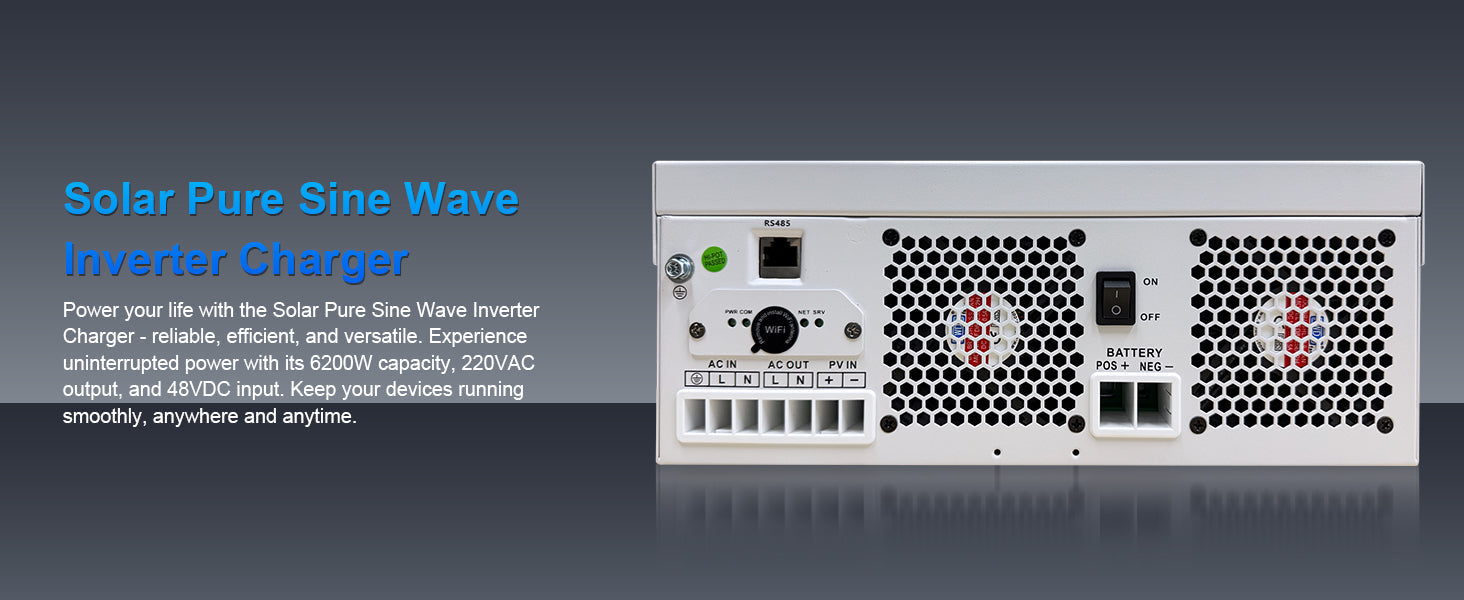

6200W Inverter: The Easun Power 6200W pure sine wave inverter efficiently converts 48V DC to 220V-230V AC. It provides clean, stable, and low-interference power output for all appliances, ensuring their long-term stable operation.
Battery-Free Operation: Our inverter operates without the need for a battery, providing you with instant and stable power supply. This eliminates the worry of battery maintenance and replacement costs, saving you money and extending the lifespan of the equipment.
Up to 500Vdc PV Input: Designed for efficient energy conversion, our inverter supports up to 500Vdc direct current input voltage, perfectly suited for large-scale photovoltaic systems. Whether for residential, commercial, or industrial applications, our inverter delivers stable and reliable power support.
High power · High efficiency · First choice for home/commercial energy storage
Our 6200W off-grid inverter is the perfect match for your home solar system – delivering reliable, high-efficiency performance for daily energy needs.
LiFePO4 Compatible with RS485/WiFi Monitoring & 1.0 PF MPPT Support
Compatible work with lifepo4 battery via Rs485
WiFi remote monitoring optional
Power factor 1.0

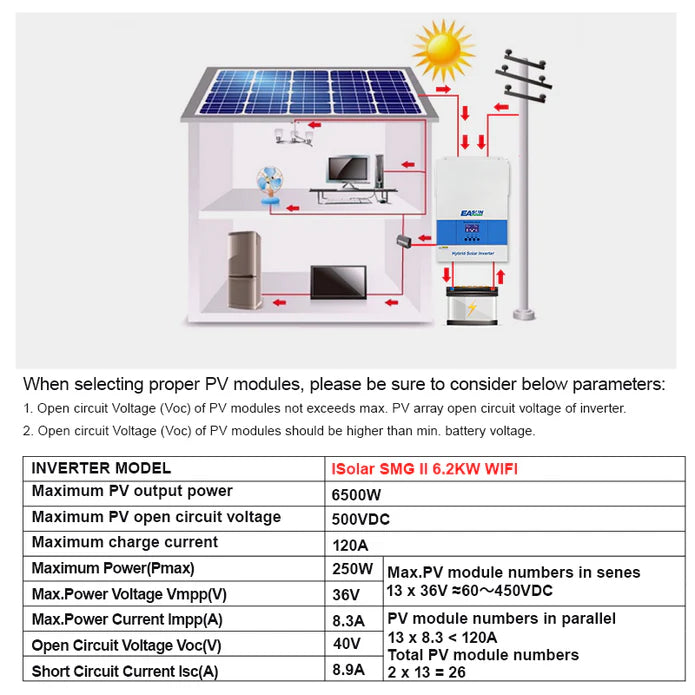

MPPT Voltage Range

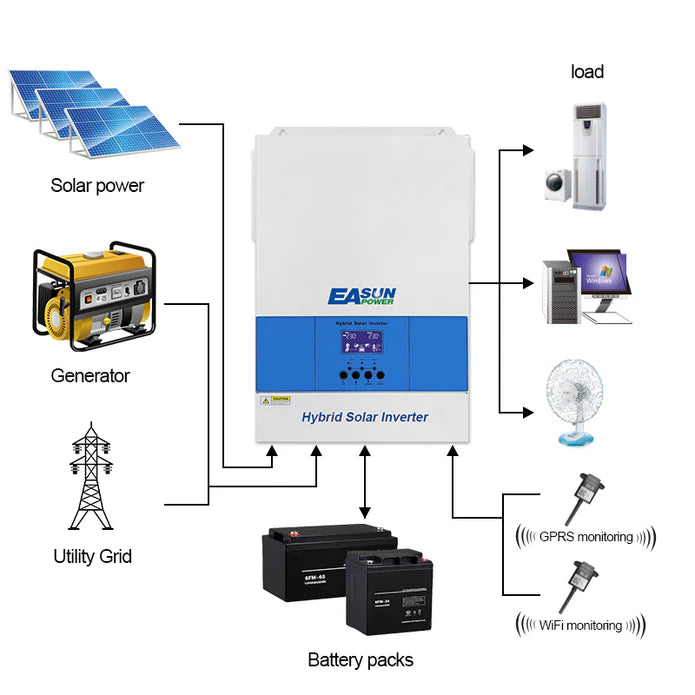

Multiple Charging and Output Modes
This versatile hybrid inverter offers 3 charging modes (Only Solar, Utility First, orSolar&Utility) and 2 output modes (Solar First, Utility First), allowing flexibility in powerdelivery based on your power source preference. In Solar Priority Mode, the inverterintelligently switches between utility and battery based on a settable battery voltage point.ensuring optimal utilization of solar energy.
120A Built-In MPPT Solar Charge Controller
The Built-In MPPT Solar Charge Controller, offering exceptional compatibility with 48Vlithium batteries, lead-acid batteries, and user-defined batteries, perfectly combines a MPPTsolar charge controller and an AC battery charger, ensuring efficient and rapid charging.With a maximum charging current of 120A (MPPT plus AC), it ensures efficient and rapidcharging for your battery system.
Full System Protection
With comprehensive protection features, it automatically restarts when AC power recovers,ensuring uninterrupted operation. Benefit from overload, over-temperature, and short circuitprotection, safeguarding your system. The smart battery charger design optimizes batteryperformance for longer life.Comprehensive protection includes under-voltage/over-voltage, overheat protection, overload, and short circuit protection for connected devices, ensuring safety and reliability.
Adapt to various usage scenarios, one machine for multiple uses
The 6200W off-grid inverter is built for versatility — perfect for homes, mobile coffee trucks, small workshops, farms, and backup systems.
EASUNPOWER Official Website
Authenticity guaranteed, worry-free after-sales service, exclusive discounts
Specification
| Parameter | Specification |
|---|---|
| Model | ISolar-SMG-II-6.2KW-48V-Wifi |
| Capacity | 6.2KVA / 6.2KW |
| Parallel Capability | NO |
| Lithium Battery Activation | YES (By PV or Utility) |
| Lithium Battery Communication | YES (RS485) |
| Input Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170-280VAC (For personal Computer); 90-280VAC (For Home Appliances) |
| Frequency | 50/60 Hz (Auto sensing) |
| Output Nominal Voltage | 220/230VAC ±5% |
| Surge Power | 12400VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms (For personal Computer); 20ms (For Home Appliances) |
| Peak Efficiency (PV to INV) | 96% |
| Peak Efficiency (Battery to INV) | 93% |
| Overload Protection | 5s @ >=140% load; 10s @ 110%~140% load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC/CV |

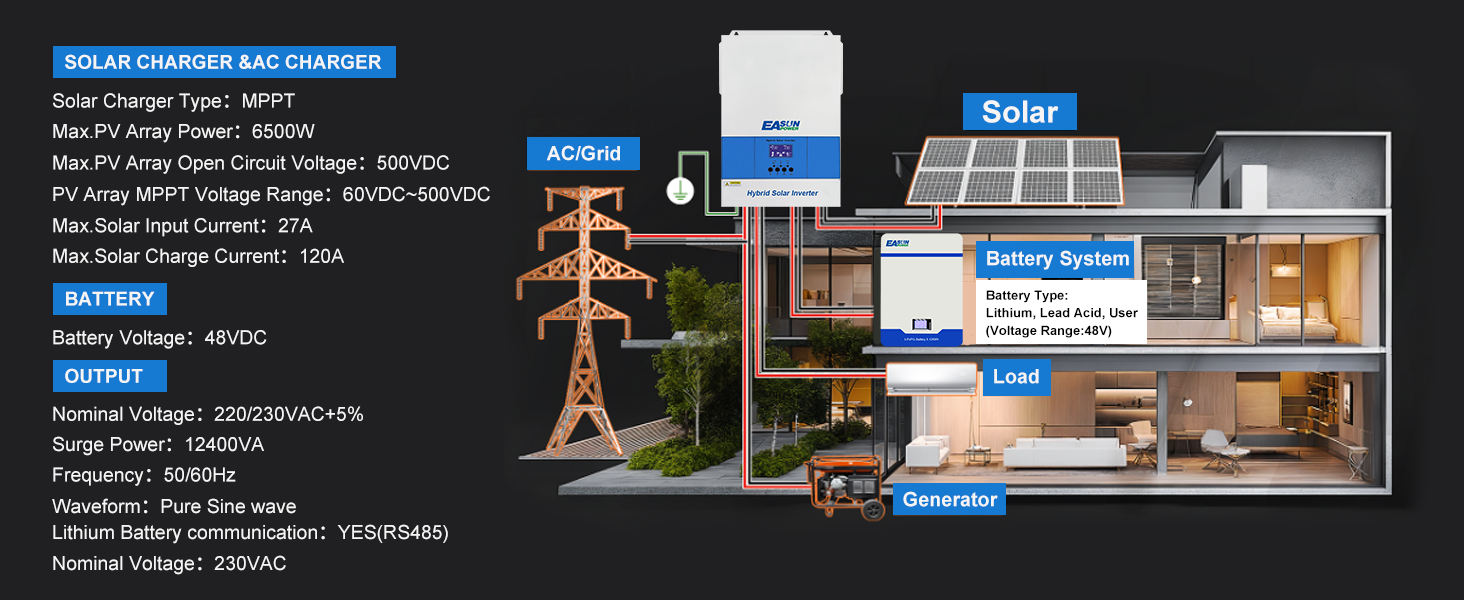

| Solar Charger Type | MPPT |
| Max PV Array Power | 6500W |
| Max PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC ~ 500VDC |
| Max Solar Input Current | 27A |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 80A |
| Max Charge Current (PV+AC) | 120A |
| Dimensions (D×W×H mm) | 438 × 295 × 105 |
| Package Dimensions (D×W×H mm) | 560 × 375 × 185 |
| Net Weight (Kg) | 9 |
| Communication Interface | RS232 + RS485 |
| Operating Temperature Range | -10℃ to 50℃ |
| Storage Temperature | -15℃ to 50℃ |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
