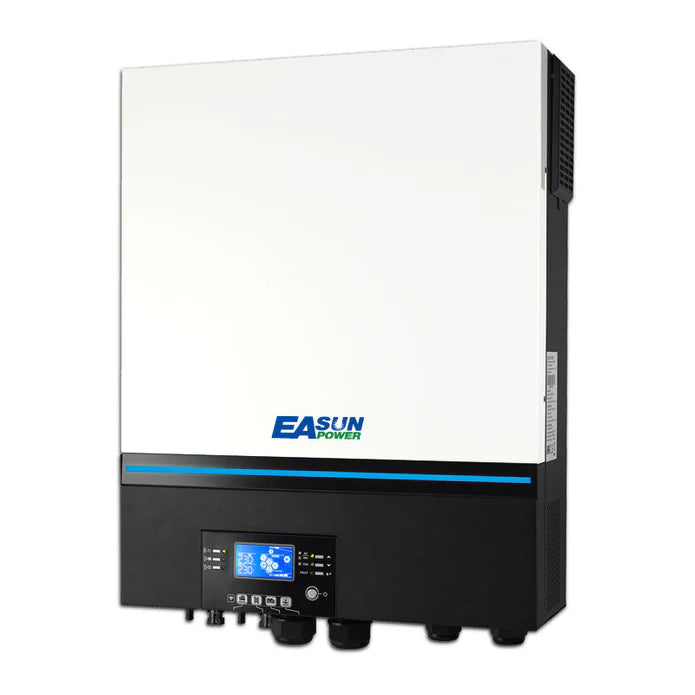

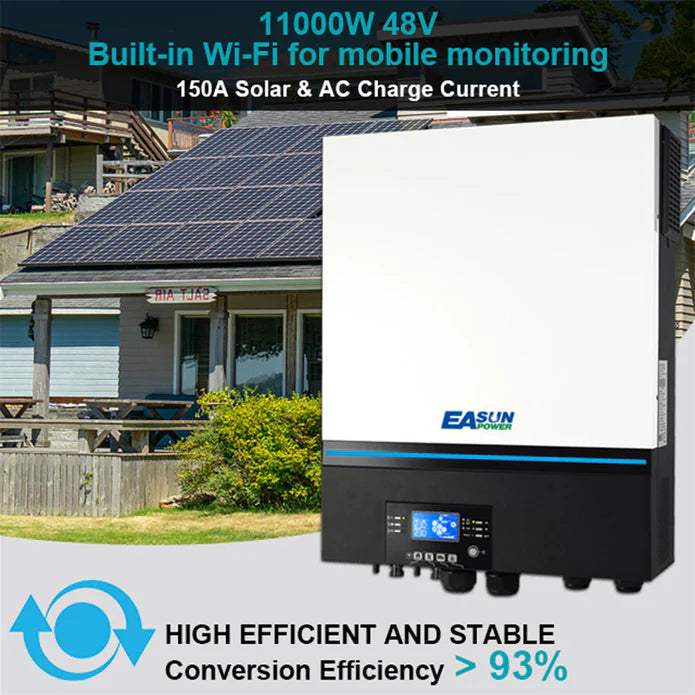

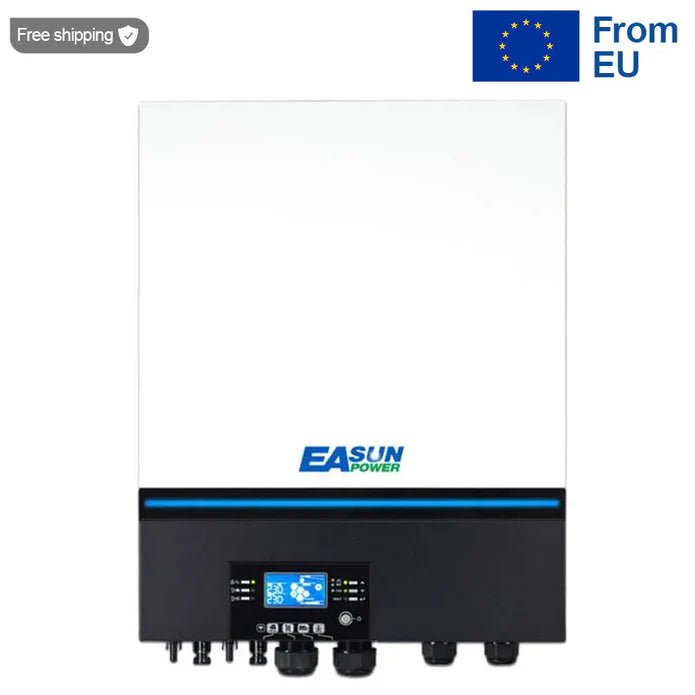

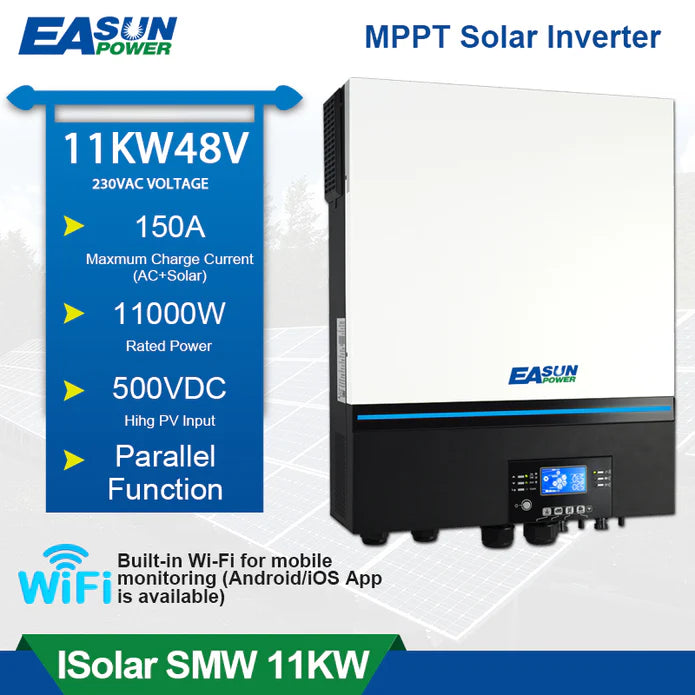

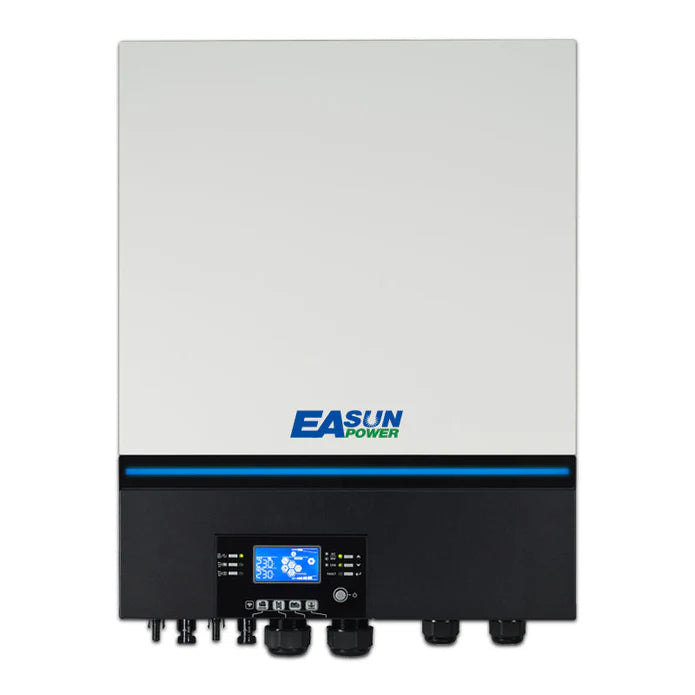

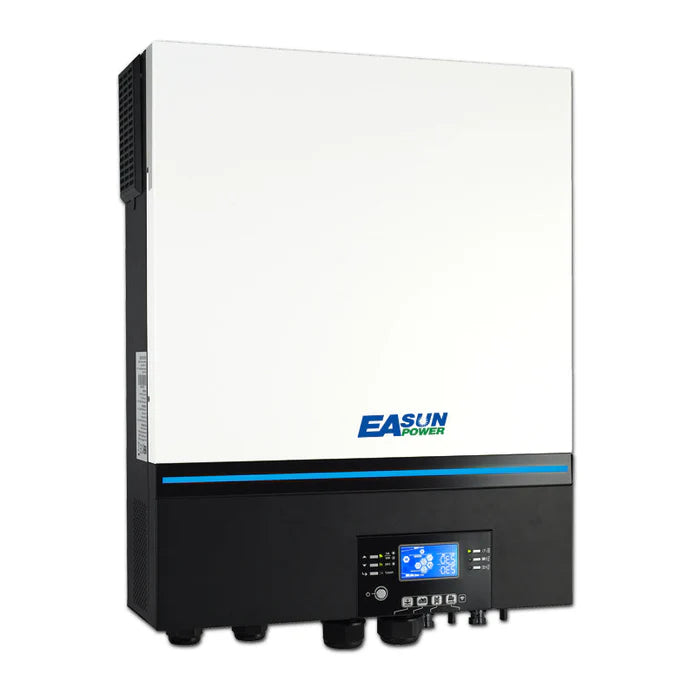

Easun Power 11KW Solar Inverter 150A MPPT Solar Charge Controller Built -in WiFi
【High Power Output】 EASUN's premium inverter with 11KW pure sinewave output, ideal for high-power appliances and commercial use.
【Dual MPPT Solar inputs】Supports up to 11,000W PV input with twoindependent MPPTs for high solar efficiency.
【Flexible Power Input】 Supports multiple energy sources: solar, gridand battery.Wide PV voltage range-up to 500V per input
【Parallel Operation Supported】 Up to 6 EASUN inverters can beparalleled for single-phase or 3-phase systems.
【Smart Monitoring】Built-in WiFi + app support. Easily monitor yourEASUN inverter anytime via mobile.
【Battery Flexibility】Compatible with lead-acid and lithium batteries.
supportS BMS (CAN/RS485/RS232) communication.
【Dual AC Output (L1/L2)】 Two output channels for separate loadcontrol and energy scheduling.
IAll-round Protection】 EASUN quality includes overload, short circuit,over/under voltage, and over-temperature protections.
Description Parallel Ready & 3-Phase Upgrade
Supports multiple units in parallel, enabling scalable power expansion
3 units can form a 3-phase system, ideal for industrial or high-demand residential loads
Modular design simplifies system upgrades and maintenance
Meets various needs from single-unit setups to complete energy systems

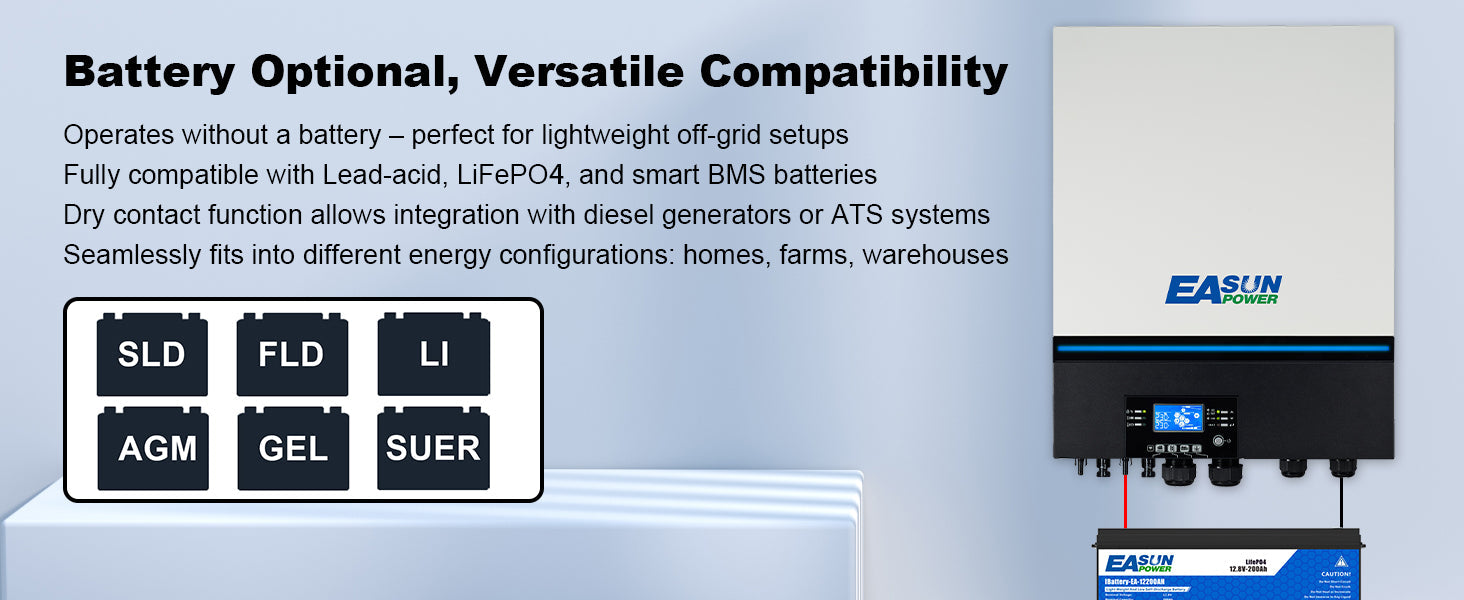

Battery Optional, Versatile Compatibility
Operates without a battery – perfect for lightweight off-grid setups
Fully compatible with Lead-acid, LiFePO₄, and smart BMS batteries
Dry contact function allows integration with diesel generators or ATS systems
Seamlessly fits into different energy configurations: homes, farms, warehouses

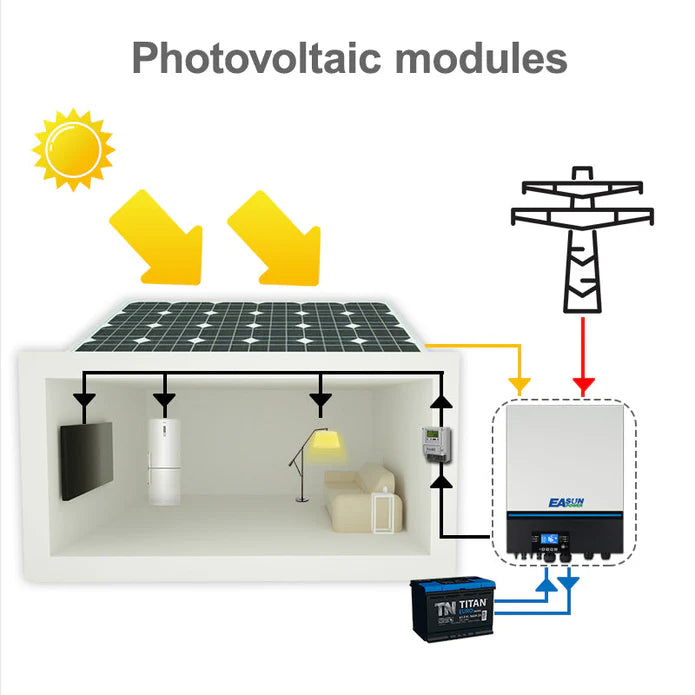

Flexible Deployment & Hybrid Compatibility

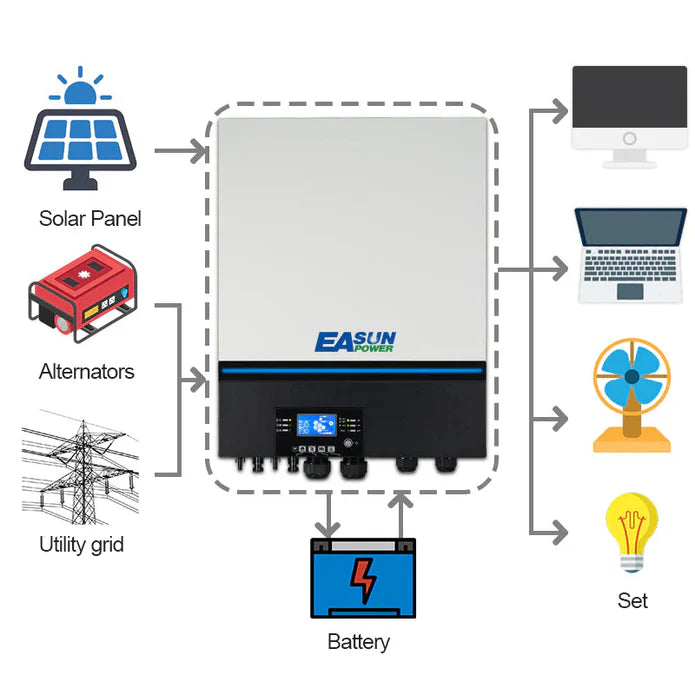

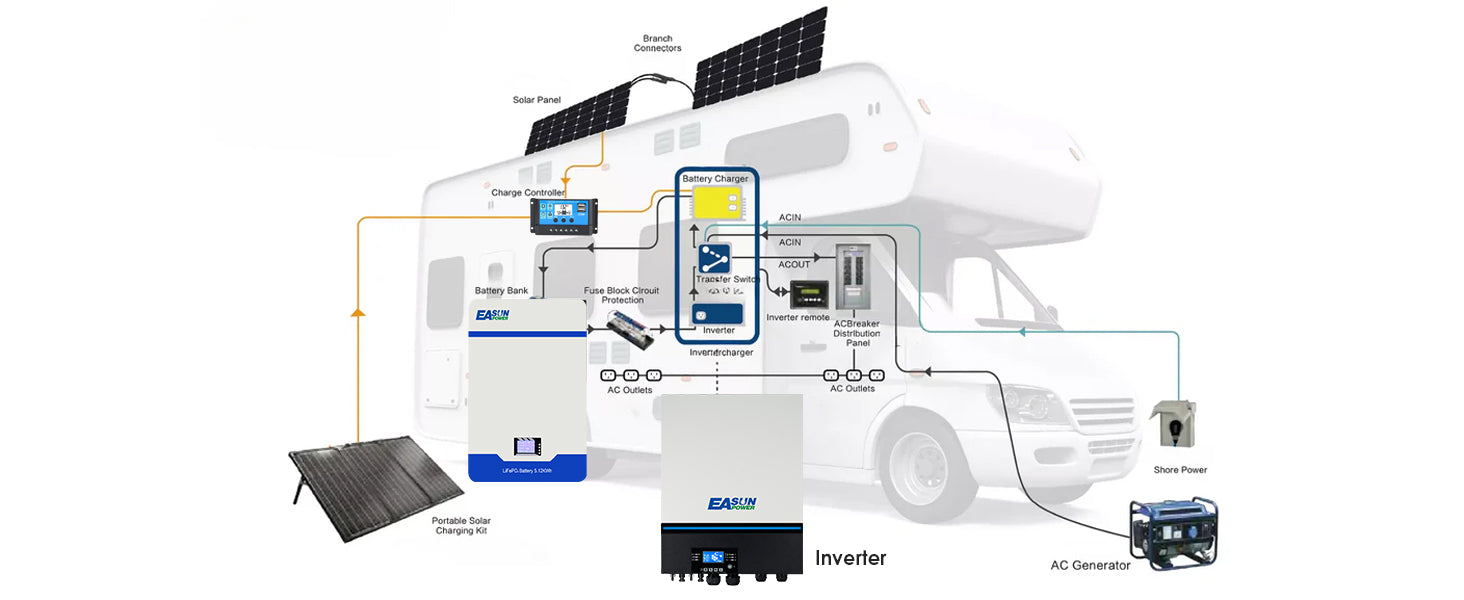

Integrates easily with solar, generator, or grid power for hybrid systems
Supports multiple output priority modes: UTL / SOL / SUB / SBU
Easy to expand and maintain, designed for long-term stable operation
Smart Monitoring & Dual Output Control
Dual MPPT inputs maximize solar harvesting efficiency
Built-in programmable dual output ports for separating critical and general loads
WiFi & RS485 communication for app and PC remote management
Intuitive LCD + PC software with multilingual interface support
EASUNPOWER Official Website
Authenticity guaranteed, worry-free after-sales service, exclusive discounts
Specification
| Category | Specification |
|---|---|
| Model | ISolar SMW 11KW |
| Capacity | 11000VA / 11000W |
| Parallel Capability | Yes, up to 6 units |
| INPUT | |
| Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170–280VAC (PC); 90–280VAC (Home Appliances) |
| Frequency | 50/60 Hz (Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220/230VAC ±5% |
| Surge Power | 22000VA |
| Peak Efficiency | 93% |
| Transfer Time | 10ms (PC); 20ms (Home appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <70W |
| Dual Outputs | Yes |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Max. PV Array Power | 5500W × 2 |
| Max. PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 90–450VDC |
| Max. Solar Input Current | 27A × 2 (Max 40A) |
| Max. Solar Charge Current | 150A |
| Max. AC Charge Current | 150A |
| Max. Charge Current (PV+AC) | 150A |
| PHYSICAL | |
| Dimensions (D×W×H) | 147.4 × 432.5 × 553.6 mm |
| Net Weight | 18.4 kg |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature Range | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
