【High Power Output】Delivers 5600W pure sine wave output, capable of running high-power appliances, ideal for residential or small commercial applications.
【Efficient Solar MPPT Input】Supports up to 6000W solar input with MPPT voltage range of 120–430V, maximizing solar energy harvesting efficiency.
【Grid Feed-In Capability】Enables excess solar energy to be fed back into the grid, reducing electricity bills and enabling potential earnings under grid-tied policies.

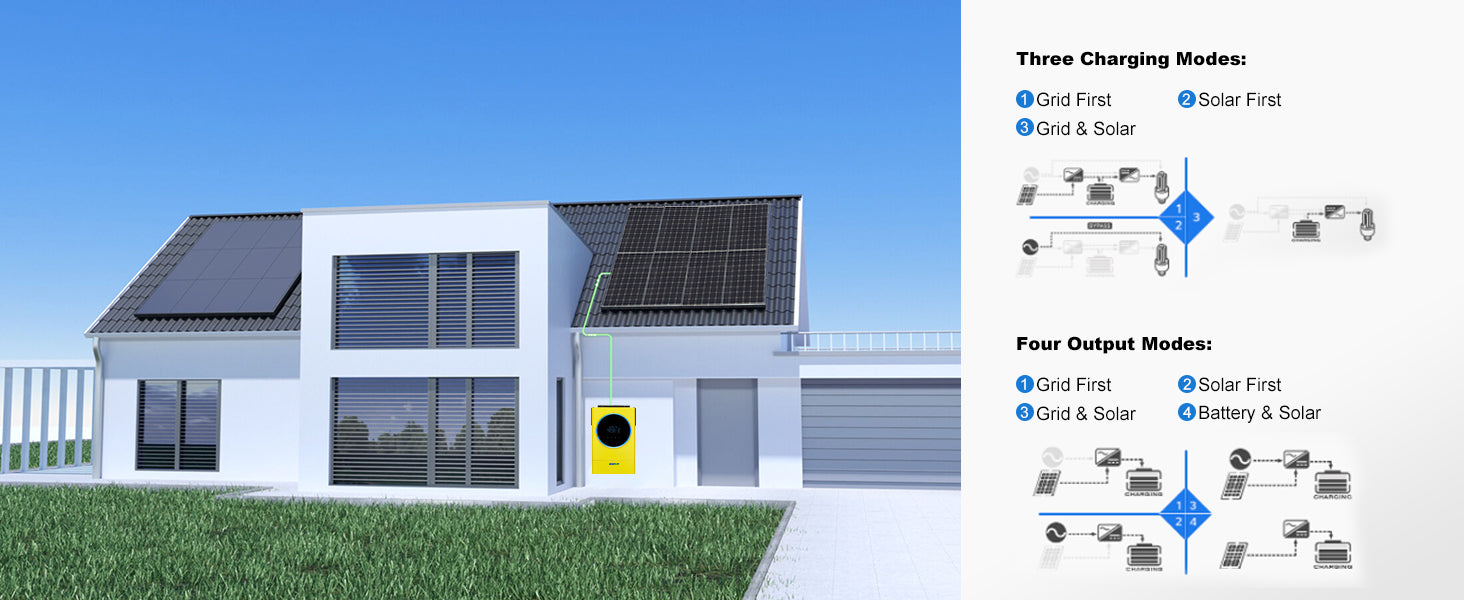

【Triple Power Source Management】Smart switching between solar, battery, and grid power, ensuring continuous and optimized power supply.
【Wide Battery Compatibility with BMS Support】Compatible with Pylontech, WECO, Soltaro and other lithium battery brands, supporting RS485/CAN/RS232 BMS communication protocols.
【Parallel and Three-Phase System Support】Supports up to 9 units in parallel, allowing for high-capacity single-phase systems or full three-phase configurations.

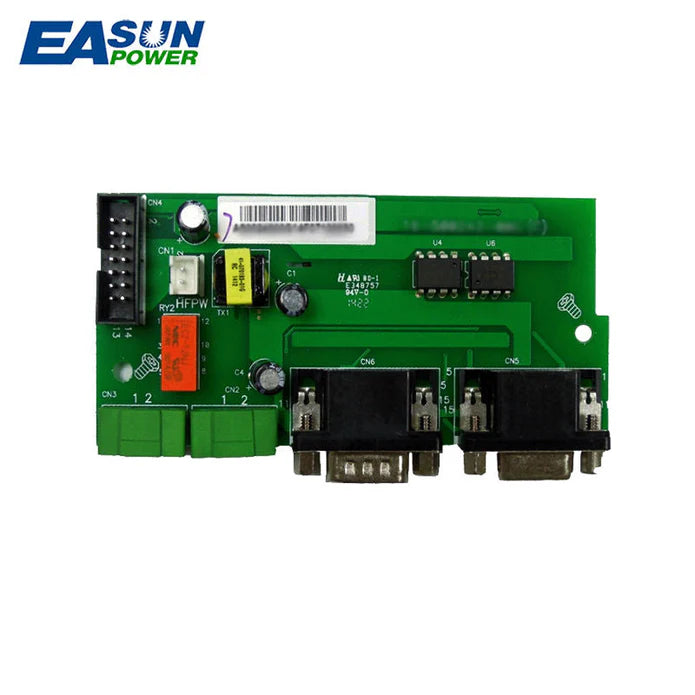

【Free Parallel Kit Included】Parallel boards included at no extra cost, reducing system expansion costs and simplifying multi-inverter installation.
【Remote Smart Monitoring】Built-in WiFi module works with the SolarPower app, enabling remote real-time monitoring of solar generation, battery status, and system alerts.
【Comprehensive Safety Protection】Integrated protections against over-voltage, under-voltage, overload, short-circuit, over-temperature, and fan failures, ensuring long-term system safety.
【Flexible Settings + Easy Maintenance】Offers 40+ customizable settings (e.g., charging schedule, voltage thresholds), and comes with a dust filter for easy cleaning and use in dusty environments.

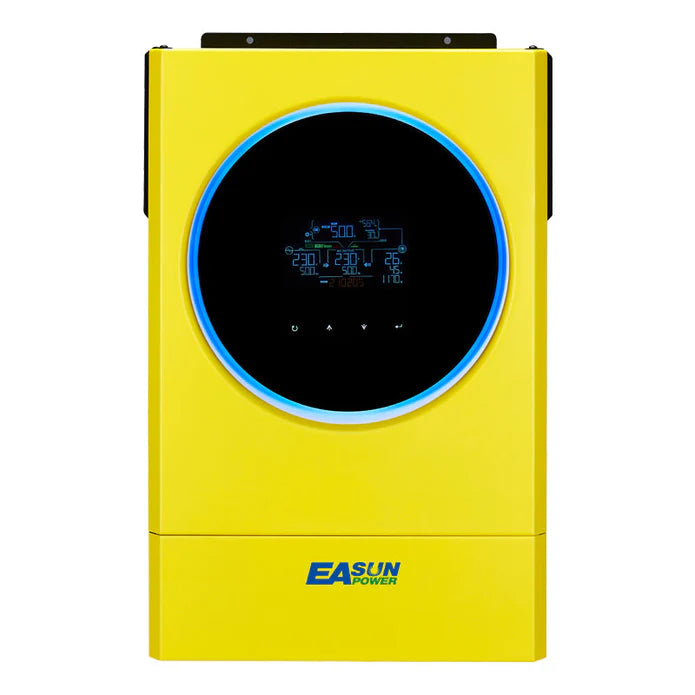

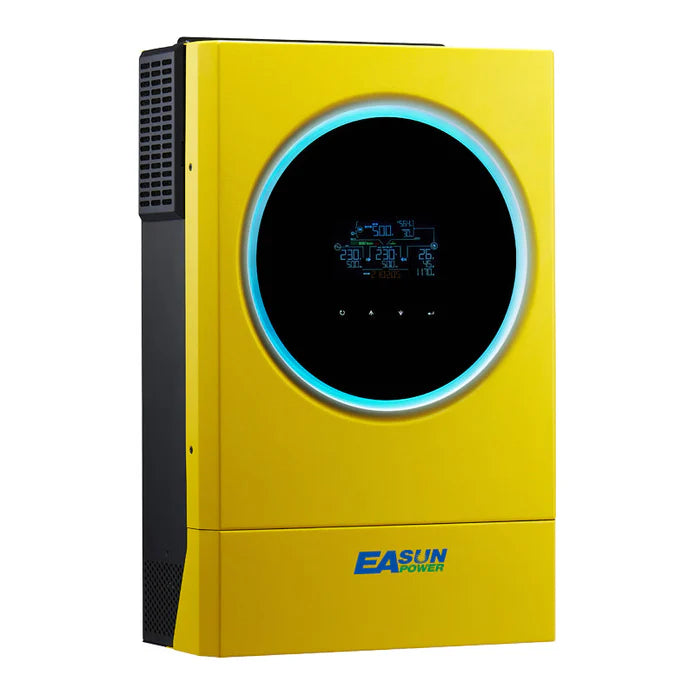

From its all-in-one design, 5600W rated power and up to 6000W peak output, to the clear LCD display, WiFi mobile monitoring, and RS485 communication support — the EASUN POWER 48V 5600W solar inverter and battery charger delivers an efficient, intelligent, and stable energy management solution for every home power need.

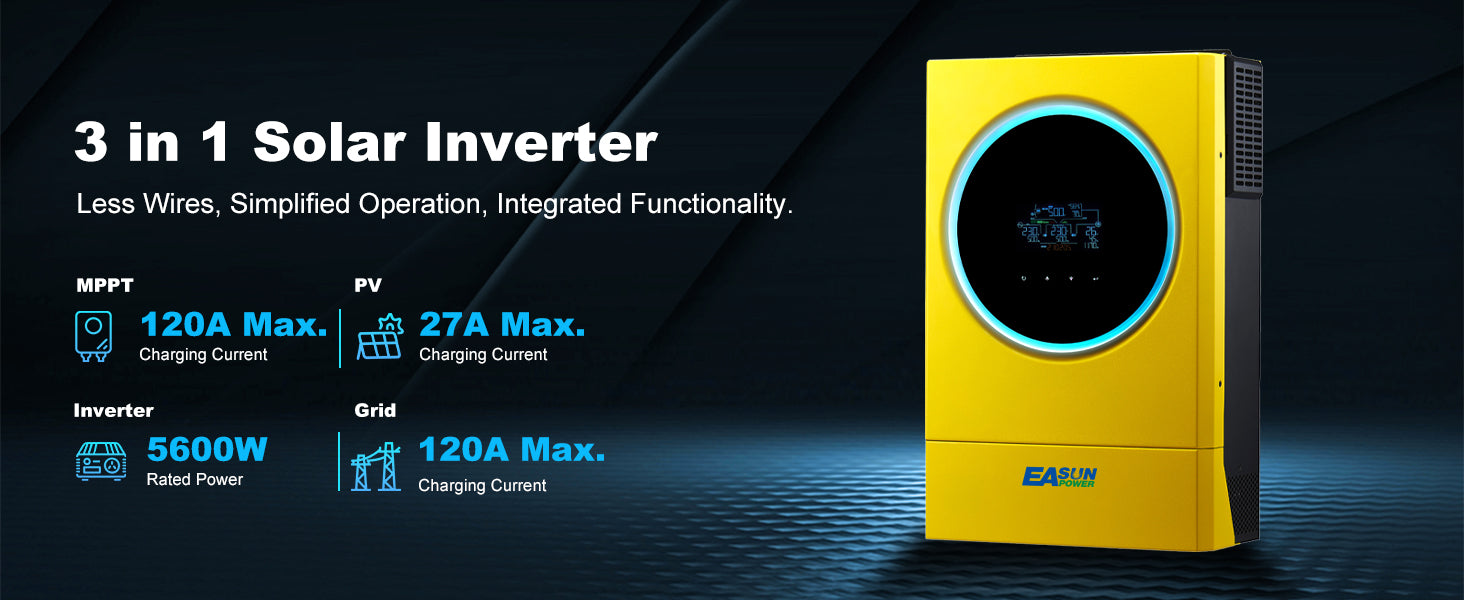

The EASUN POWER all-in-one solar inverter and charger combines a 120A MPPT controller and a 6200W inverter into a single unit, minimizing wiring complexity while maximizing functionality — an ideal choice for streamlining home energy systems.

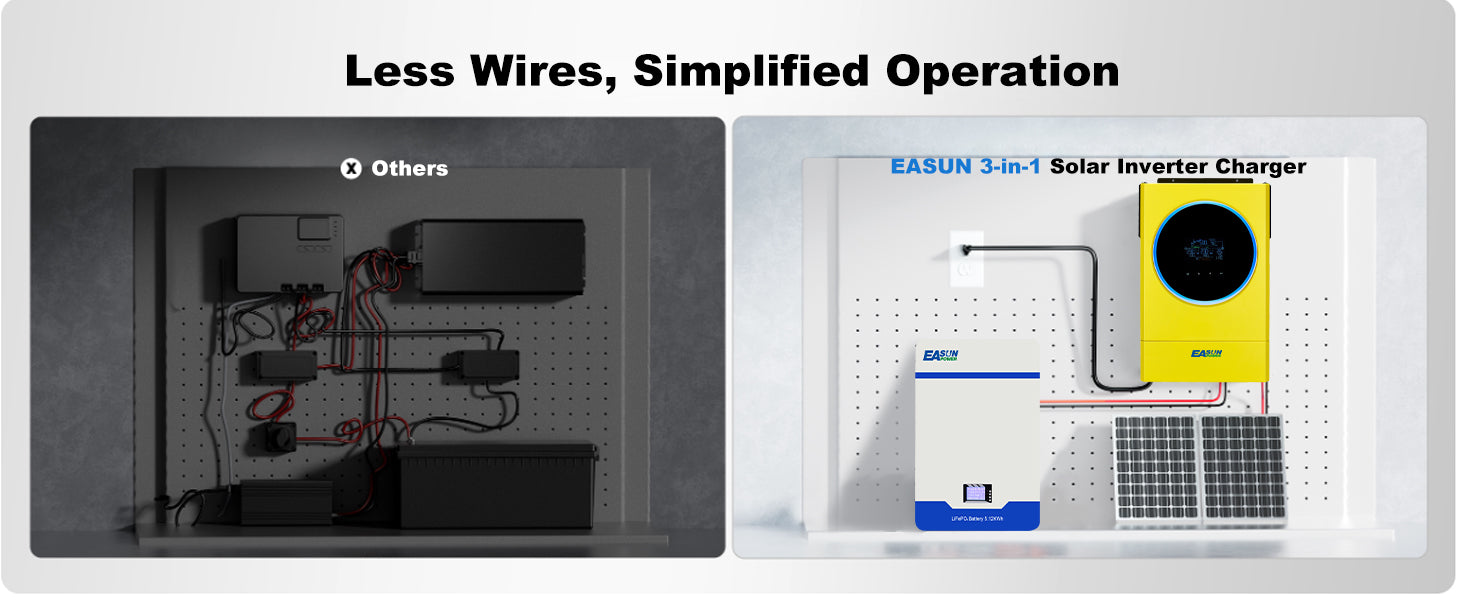

Say goodbye to messy wiring and scattered components! The EASUN POWER solar inverter charger integrates MPPT, inverter, and charger into a compact unit — saving installation space, simplifying wiring, and making your home energy system cleaner, safer, and easier to manage.

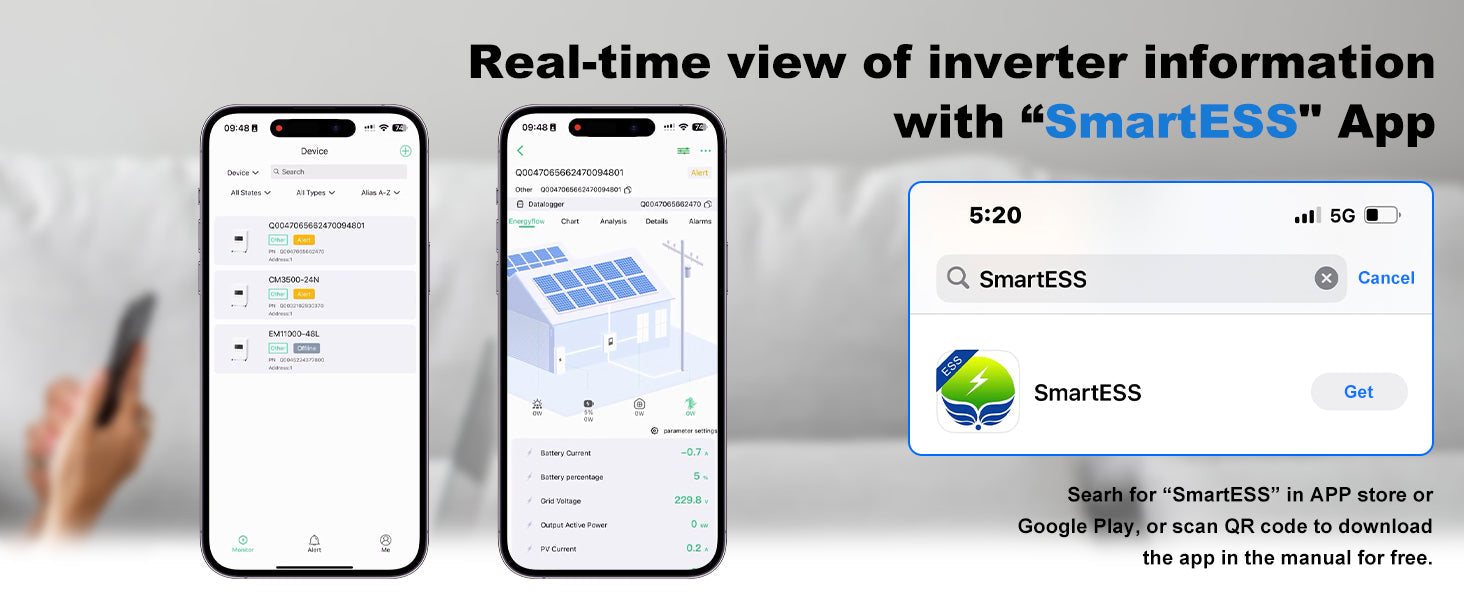

View real-time battery information using the “SmartESS” app. Simply search for “SmartESS” in the App Store or Google Play, or scan the QR code in the manual to download the app for free. This allows you to conveniently monitor and manage inverter performance directly from your smartphone or tablet.
Easunpower 48V 5600W solar inverter battery charger is designed to be suitable for various occasions, offering a versatile and reliable energy management solution for a range of applications including garages, home, solar systems, farms and so on.

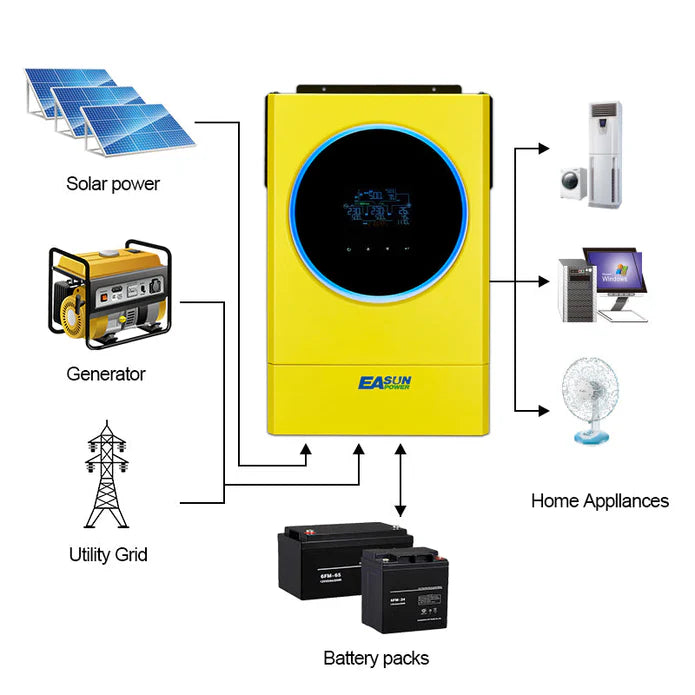

The EASUN 48V 6200W solar inverter integrates solar input, grid power, and battery charging capabilities—offering seamless charging, stable power output, and reliable backup power. Easily create a complete and professional home energy system.
Authenticity guaranteed, worry-free after-sales service, exclusive discounts

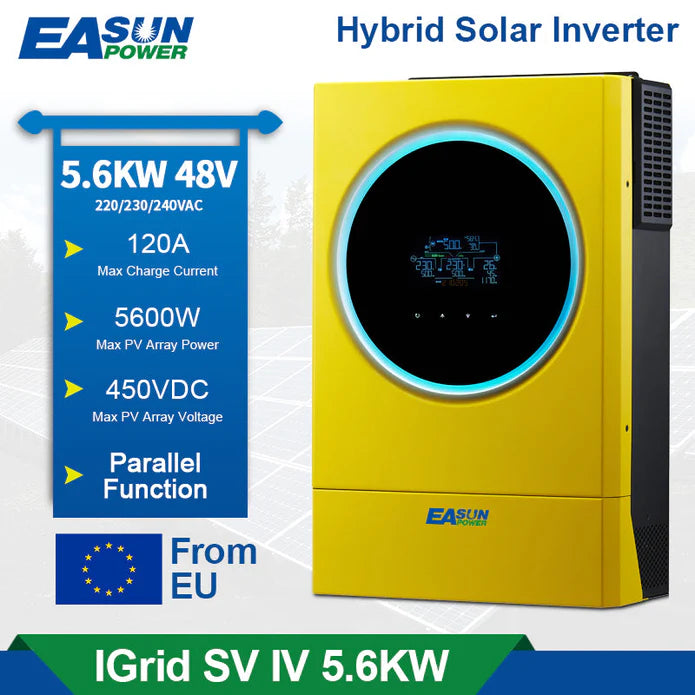

| Model | IGrid SV-IV 5.6KW | ||
|---|---|---|---|

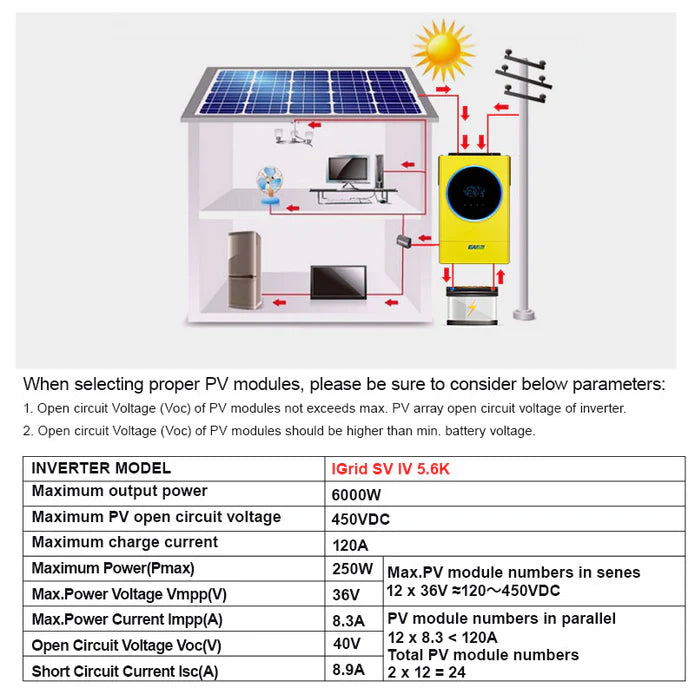

| Maximum PV Input Power | 6000W | ||
| Rated Output Power | 5600W | ||
| Maximum Charging Power | 6000W | ||
| PV Input (DC) - Grid-Tie Operation | |||
| Nominal / Max DC Voltage | 360 VDC / 450 VDC | ||
| Start-up / Initial Feeding Voltage | 110VDC / 120 VDC | ||
| MPPT Voltage Range | 120 VDC ~ 430 VDC | ||
| Number of MPPT Trackers / Max Input Current | 1 / 27 A | ||
| Grid Output (AC) - Grid-Tie Operation | |||
| Nominal Voltage | 220/230/240 VAC | ||
| Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable) | ||
| Nominal Output Current | 24.3A | ||
| Power Factor | > 0.9 | ||
| Efficiency (Grid-Tie Operation) | |||
| Maximum Conversion Efficiency (DC/AC) | 96% | ||
| Battery & Charger (Hybrid Operation) | |||
| Nominal DC Voltage | 48 VDC | ||
| Max Solar Charging Current | 120A | ||
| Max AC Charging Current | 120A | ||
| Max Charging Current | 120A | ||
| Physical & Environment | |||
| Dimensions (D×W×H mm) | 140 x 295 x 468 | ||
| Net Weight (Kg) | 12 | ||

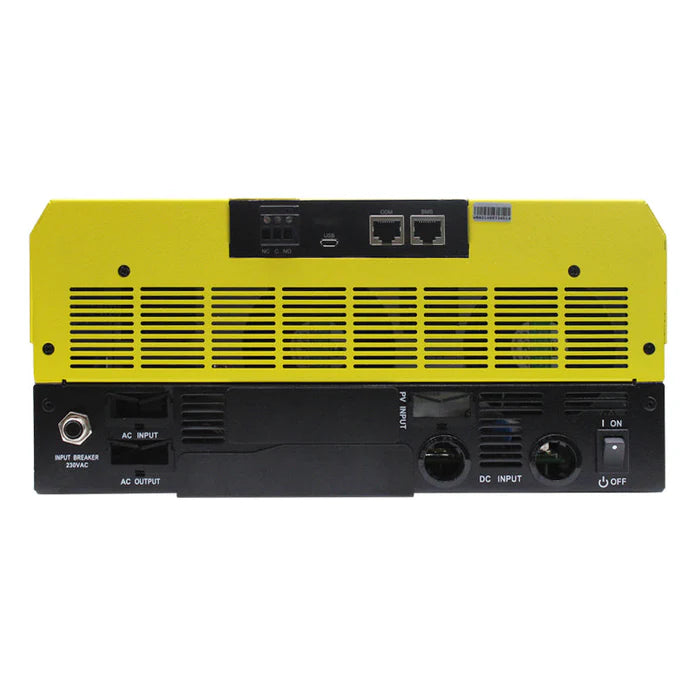

| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | ||
| Humidity | 0 ~ 90% RH (Non-condensing) | ||
| Operating Temperature Range | -10 to 50 ºC | ||
