With This Battery You Can Power Up…
🏠 Home Backup
Upgrade your home energy storage with 10kWh capacity, support up to 16 batteries in parallel — ideal for household backup.
Skip to product information
INQUIRY

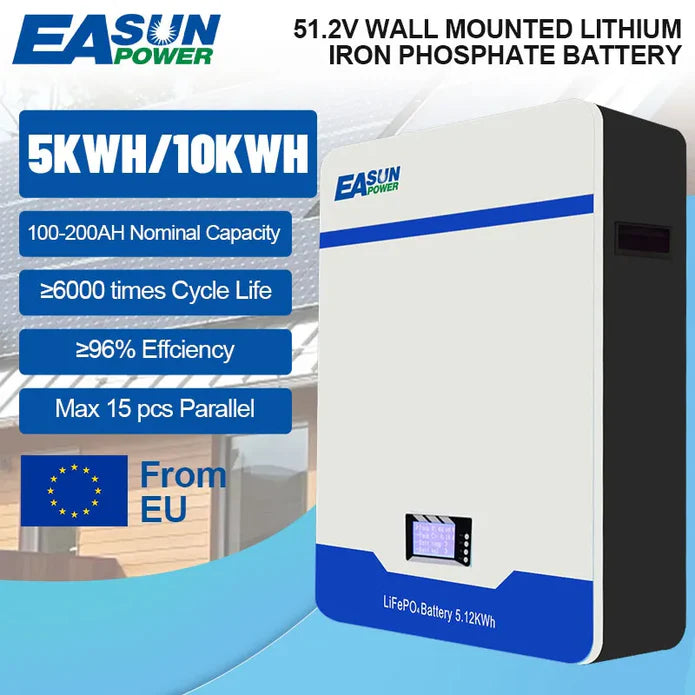

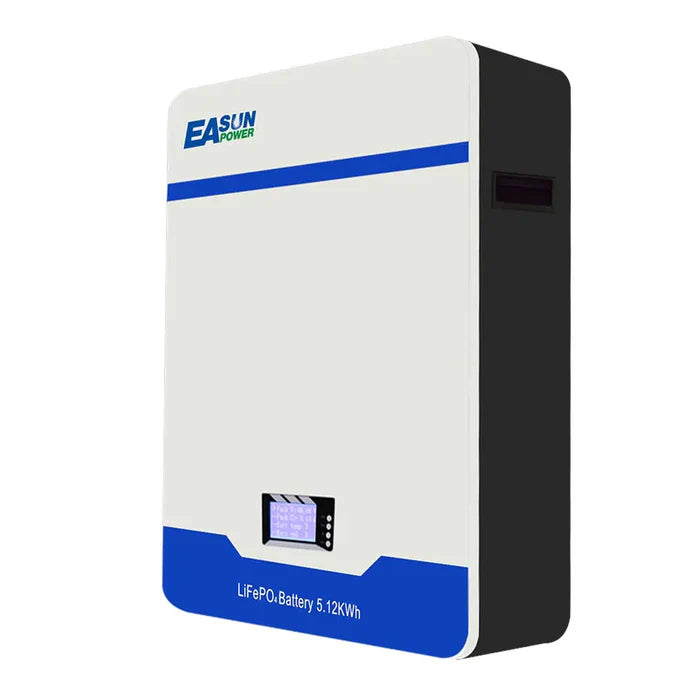

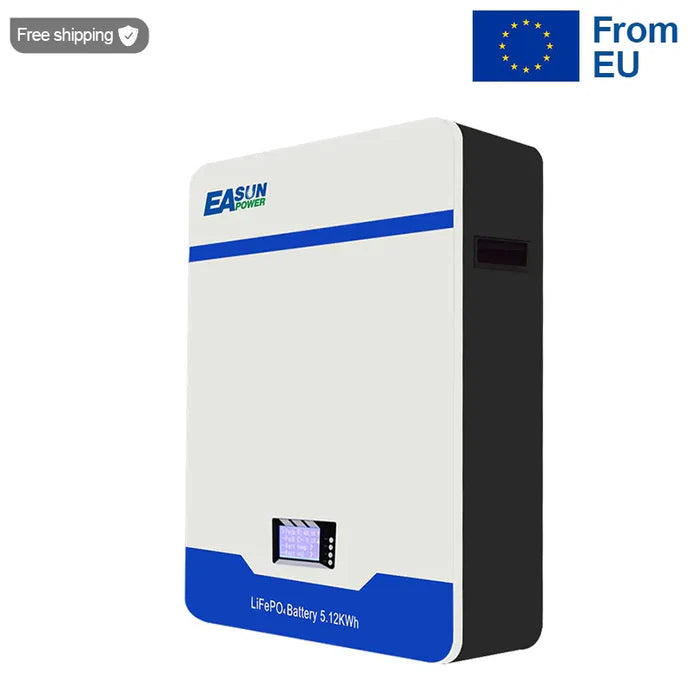

Easun Power 51.2.V 200AH LiFePO4 Battery

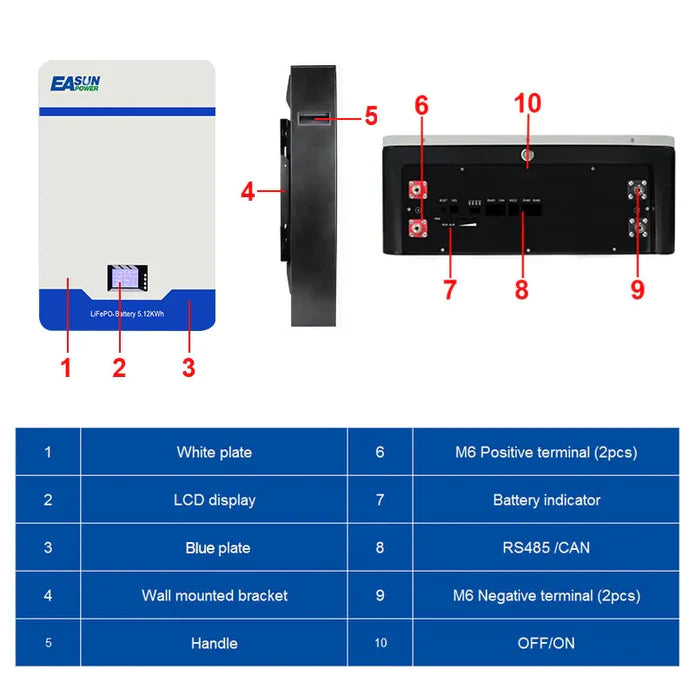

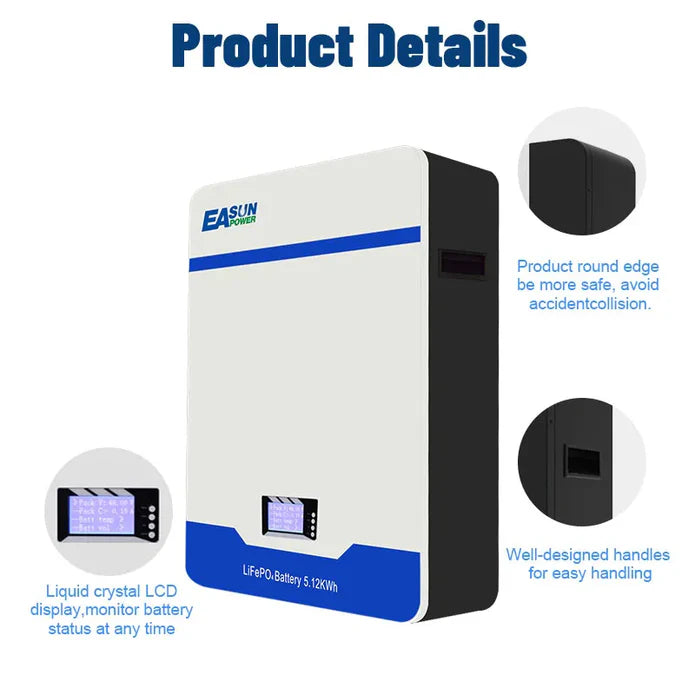

- CHARACTER: THE 51.2V 200AH LFP BATTERY IS COMPACT, WELL-DESIGNED, LCD, AND CABLE/ACCESSORIES READY FOR INSTALLATION. ≥6000 CYCLES DEEP CYCLE, DESIGNED FOR UP TO 10-YEAR LIFE.
- INTELLIGENT BMS: BATTERY MANAGEMENT SYSTEM CAN MANAGE AND MONITOR CELLS INFORMATION INCLUDING VOLTAGE, CURRENT AND TEMPERATURE, PROTECTS IT FROM OVERCHARGE, DEEP DISCHARGE, OVERLOADING, OVERHEATING AND SHORT CIRCUIT, HELP TO EXTEND LIFETIME.

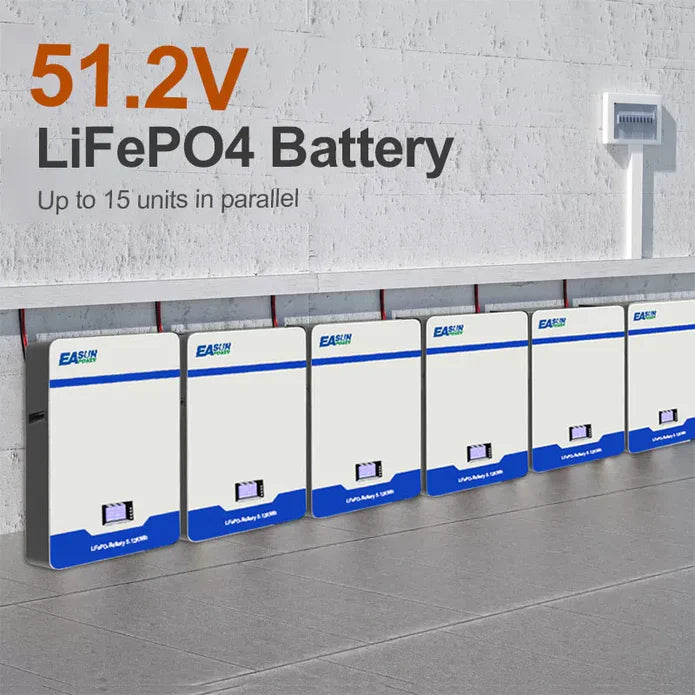

- FLEXIBLE: MODULAR DESIGN, EASY TO EXPAND, MAX 15 UNITS IN PARALLEL, SUITABLE TO RESIDENTIAL AND COMMERCIAL APPLICATIONS AND OTHER ENERGY STORAGE SYSTEM FOR INCREASING THE SELF-CONSUMPTION RATIO.
- COMPATIBLE: CAN/RS485 COMMUNICATION PROTOCOL LITHIUM ION BATTERY CAN BE COMPATIBLE WITH MOST INVERTERS IN THE MARKET.
Safe Reliable
Utilizes LiFePO4 chemistry, known for its superior thermal and chemical stability
Built with A+ grade cells, 6000+ cycles @ 80% DOD，offering low risk of overheating or fire
Features multiple protection mechanisms: over-voltage, over-current, short circuit, temperature, and more
Smart Management System
Equipped with advanced BMS (Battery Management System)
Real-time monitoring of voltage, current, temperature, and state of charge.
Supports RS485/RS232/CAN communication, seamlessly integrates with major inverter brands
Automatically balances cells to maximize battery lifespan and efficiency
Flexible & Scalable

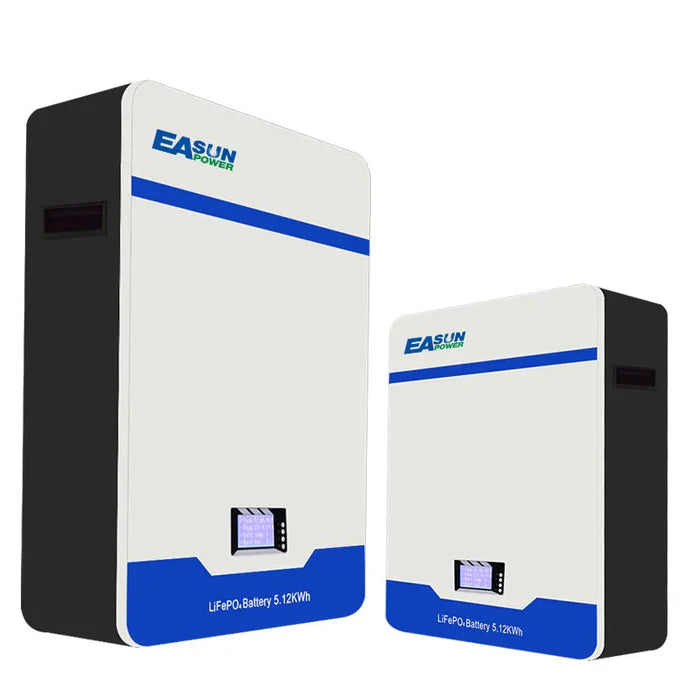

Wall-mounted & modular design saves space and supports parallel expansion

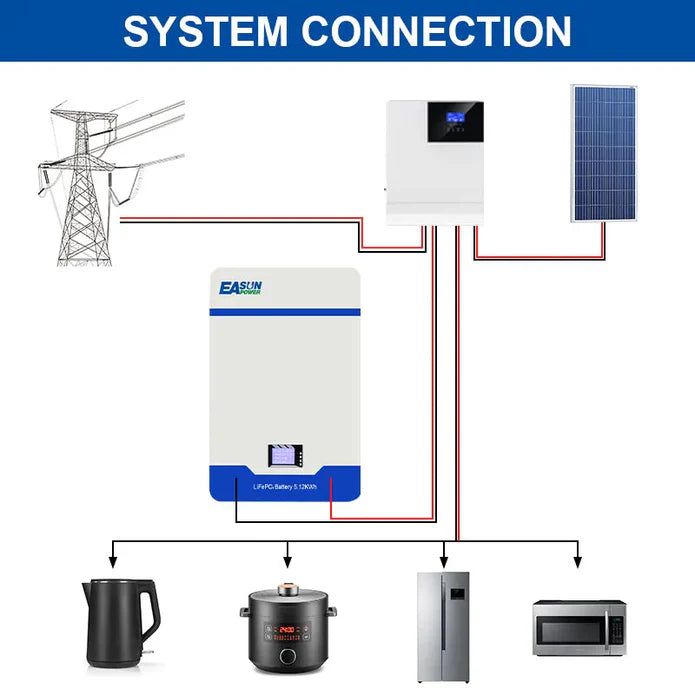

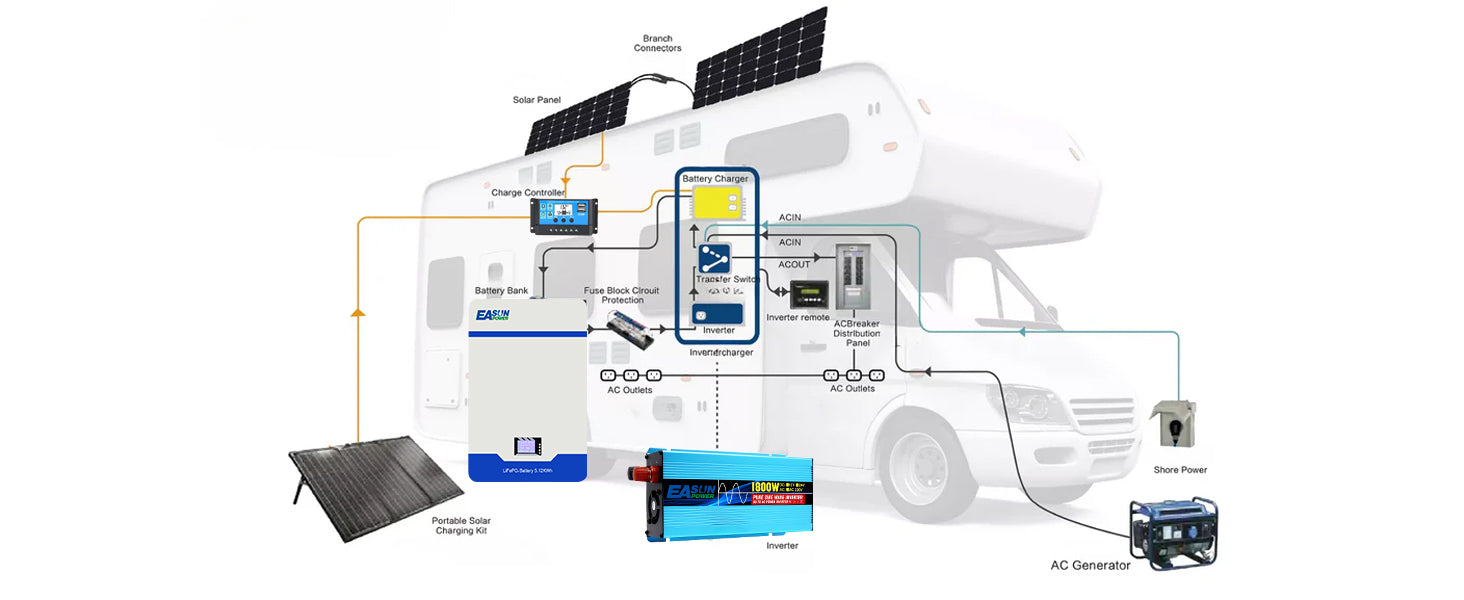

Wide compatibility with off-grid and hybrid solar systems

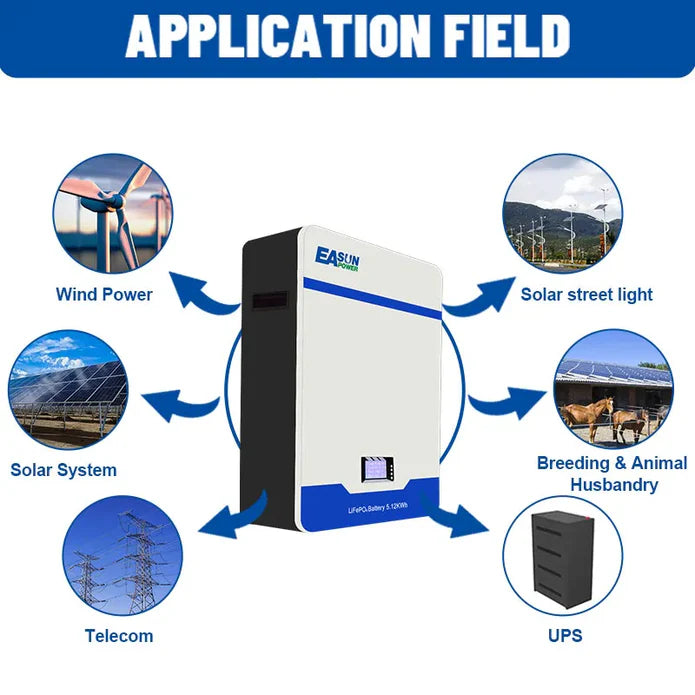

Perfect for residential backup, small commercial setups, telecom, and off-grid cabins
Silent, maintenance-free operation — ideal for indoor installation
EASUNPOWER Official Website
Authenticity guaranteed, worry-free after-sales service, exclusive discounts
Specification
| Model | 51.2V–100AH | 51.2V–200AH | 51.2V–300AH |
|---|---|---|---|
| Nominal Capacity | 51.2V (16S2P of 3.2V 100Ah cells) | 51.2V (16S2P of 3.2V 200Ah cells) | 51.2V (3.2V 304Ah Cell–16S1P) |
| Factory Voltage | 52V – 54V | 52V – 54V | 52V – 54V |
| Charge Cut-off Voltage | 58.4V | 58.4V | 58.4V |
| Discharge Cut-off Voltage | 40V | 40V | 40V |
| Standard Charge Current | 50A | 50A | 100A |
| Standard Discharge Current | 50A | 50A | 100A |
| Max Continuous Charge Current | 100A (T ≥ 10℃) | 200A (T ≥ 10℃) | 200A (T ≥ 10℃) |
| Max Continuous Discharge Current | 100A (T ≥ 10℃) | 200A (T ≥ 10℃) | 200A (T ≥ 10℃) |
| Cycle Life | ≥ 6000 cycles (80%DOD, 0.2C/0.5C at 25℃) | ||
| Weight | 46 ±3 kg | 87 ±3 kg | 120 ±3 kg |
| Dimensions (L×W×H) | 600×407×154 mm | 839×486×154 mm | 520×280×751 mm |
| Operating Temperature | Charge: 0~45℃ / Discharge: -20~55℃ | ||
| Storage Temperature | -10~45℃ (Short term: -20~65℃) | ||
| Supported Cell Series | 8*16 series | ||
| Protection Features | Overcharge, Over-discharge, Over-current, Short-circuit, Temperature, Balancing | ||
| Communication Interfaces | RS232, RS485-1, RS485-2, CAN (500Kbps) | ||
