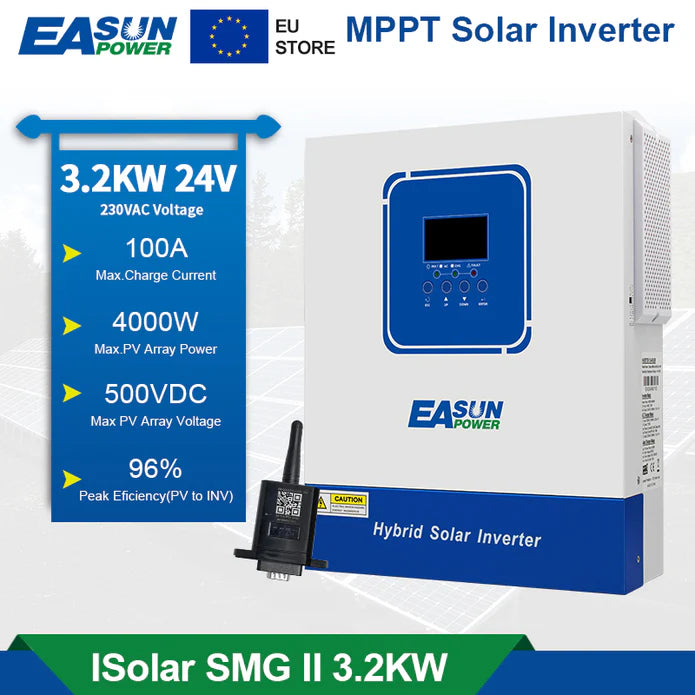

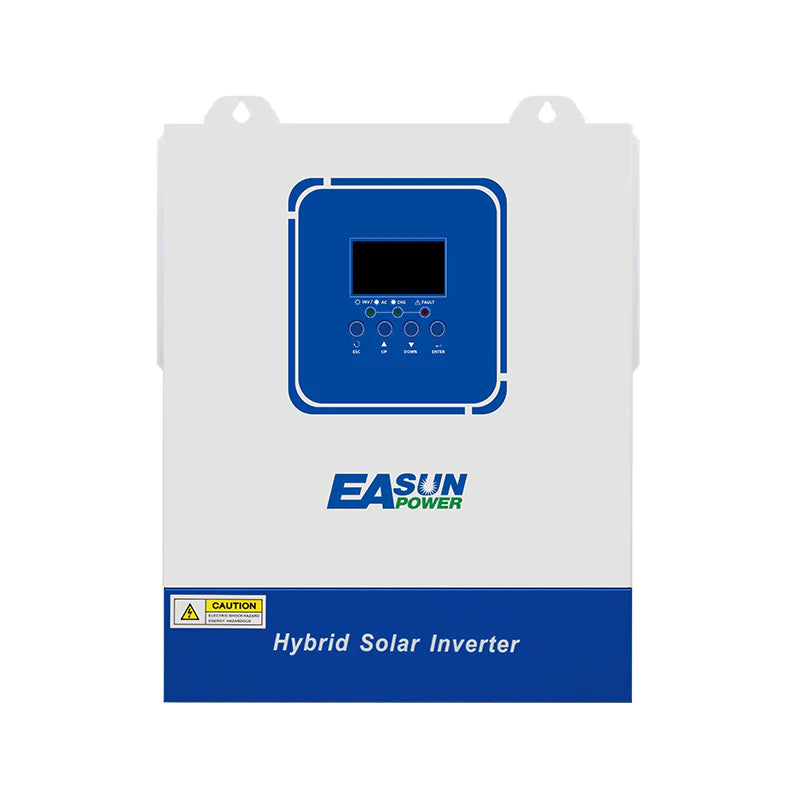

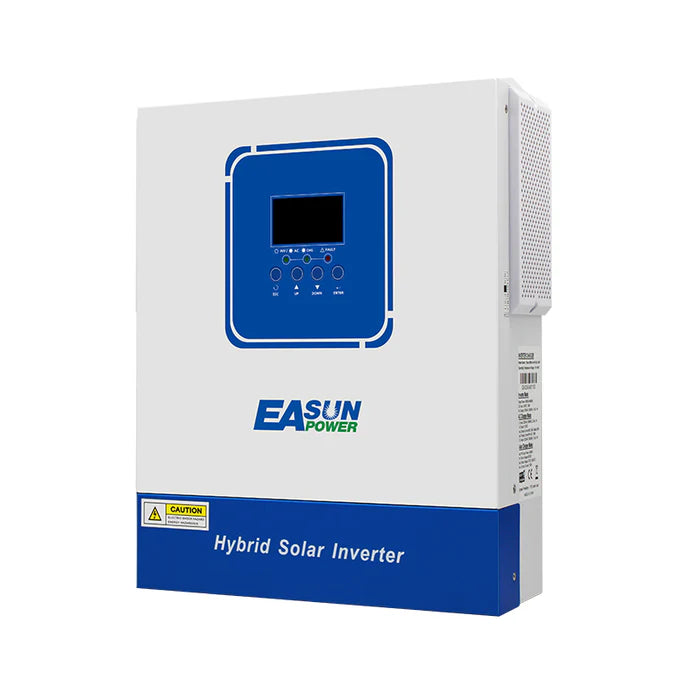

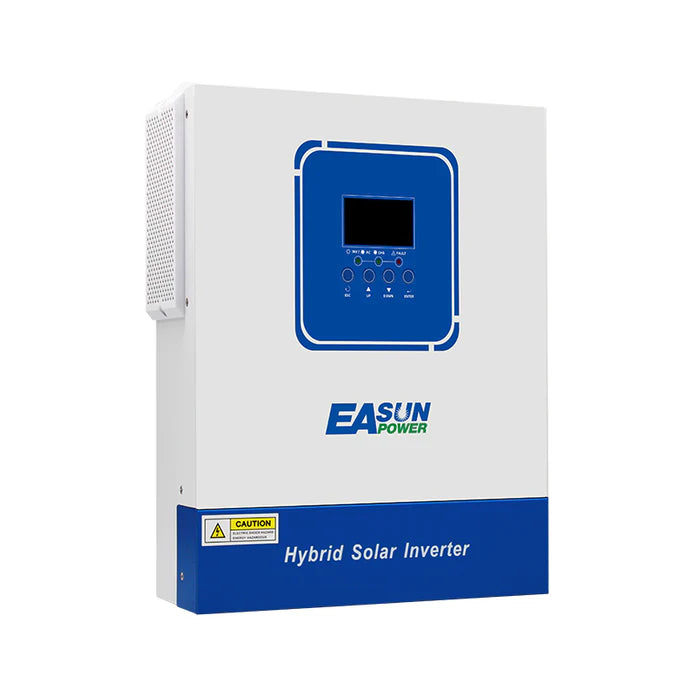

EasunPower 3.2KW Solar INVERTER 100A MPPT With WiFi
1/7

EasunPower 3.2KW Solar INVERTER 100A MPPT With WiFi

INQUIRY

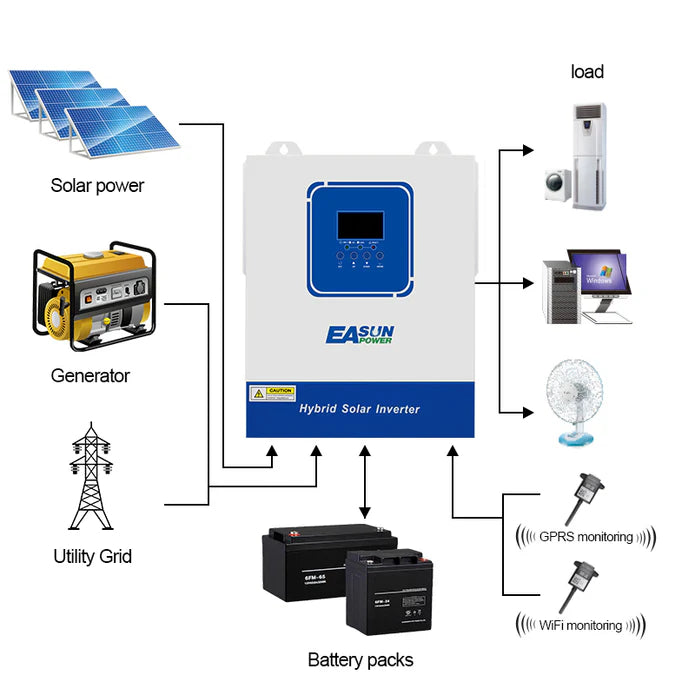

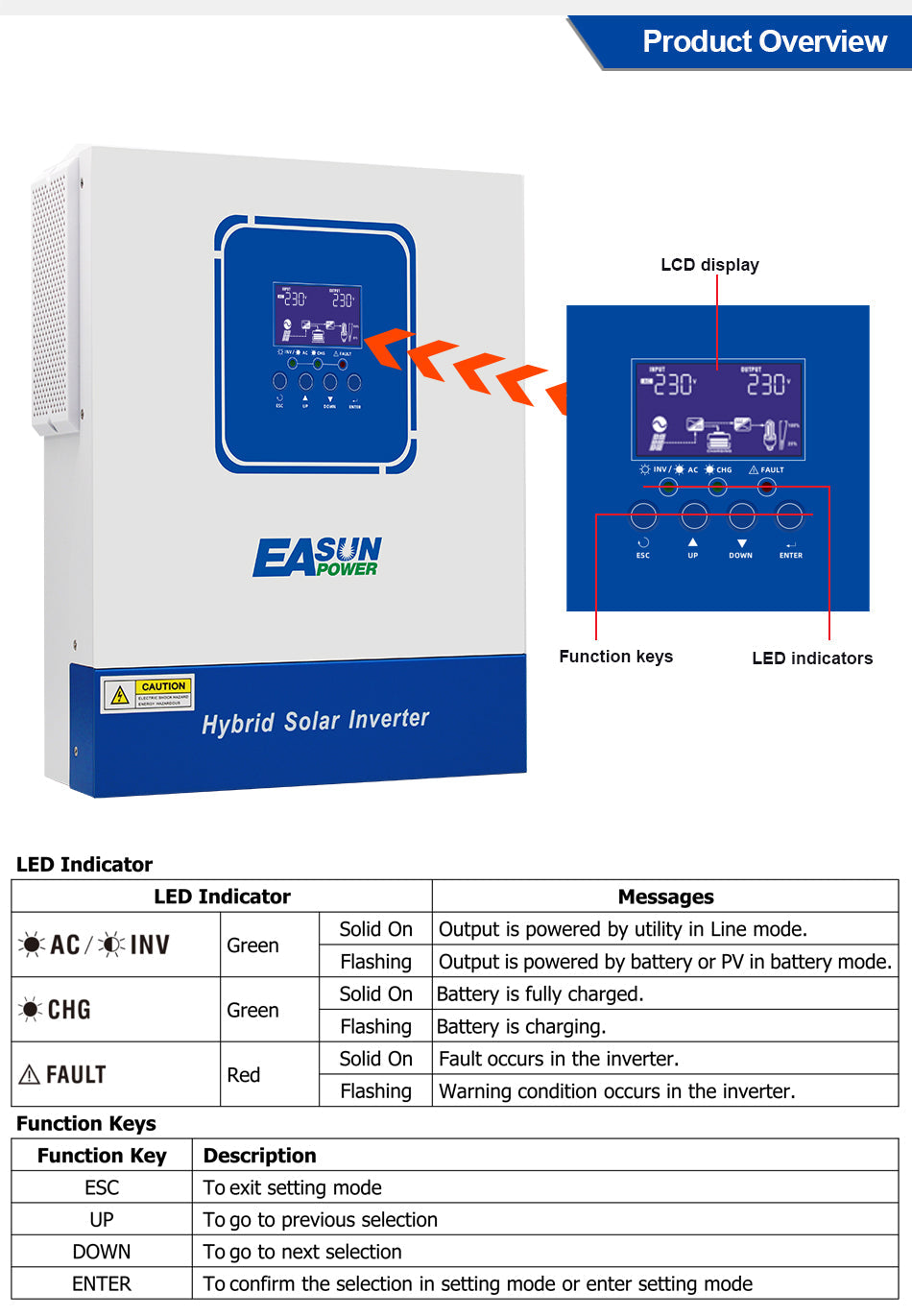

This is a multi-function inverter charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

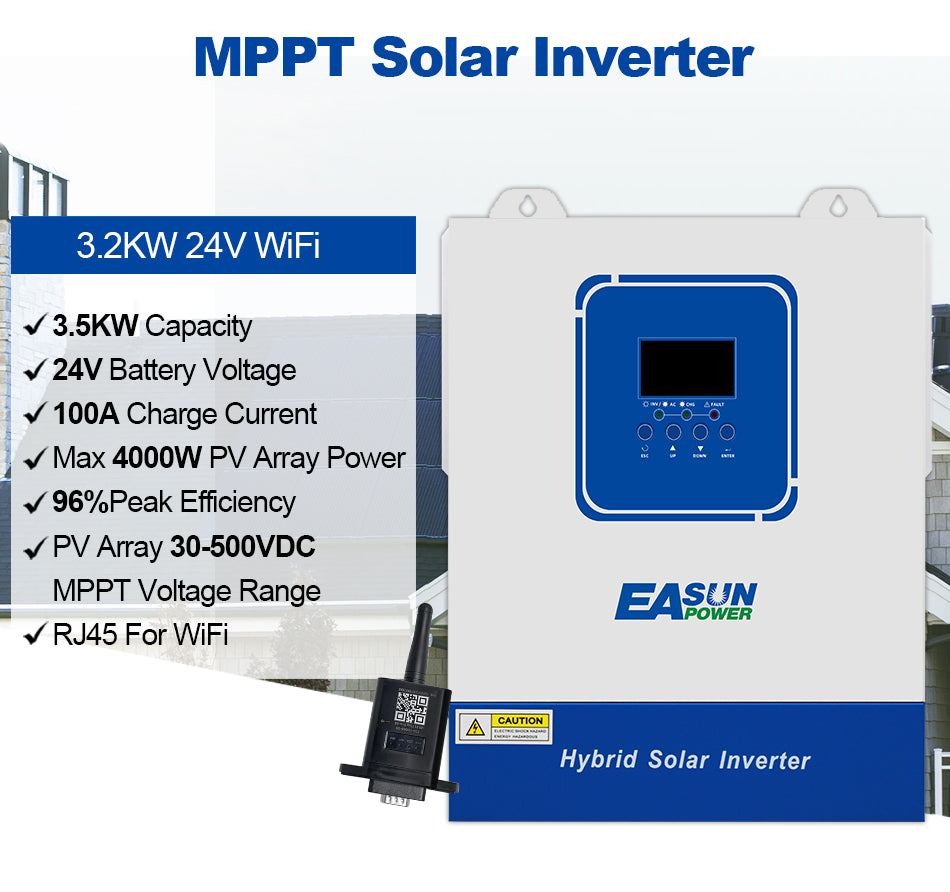

Product Features

  • Battery Wake-up Functio
  • Pure Sine Wave

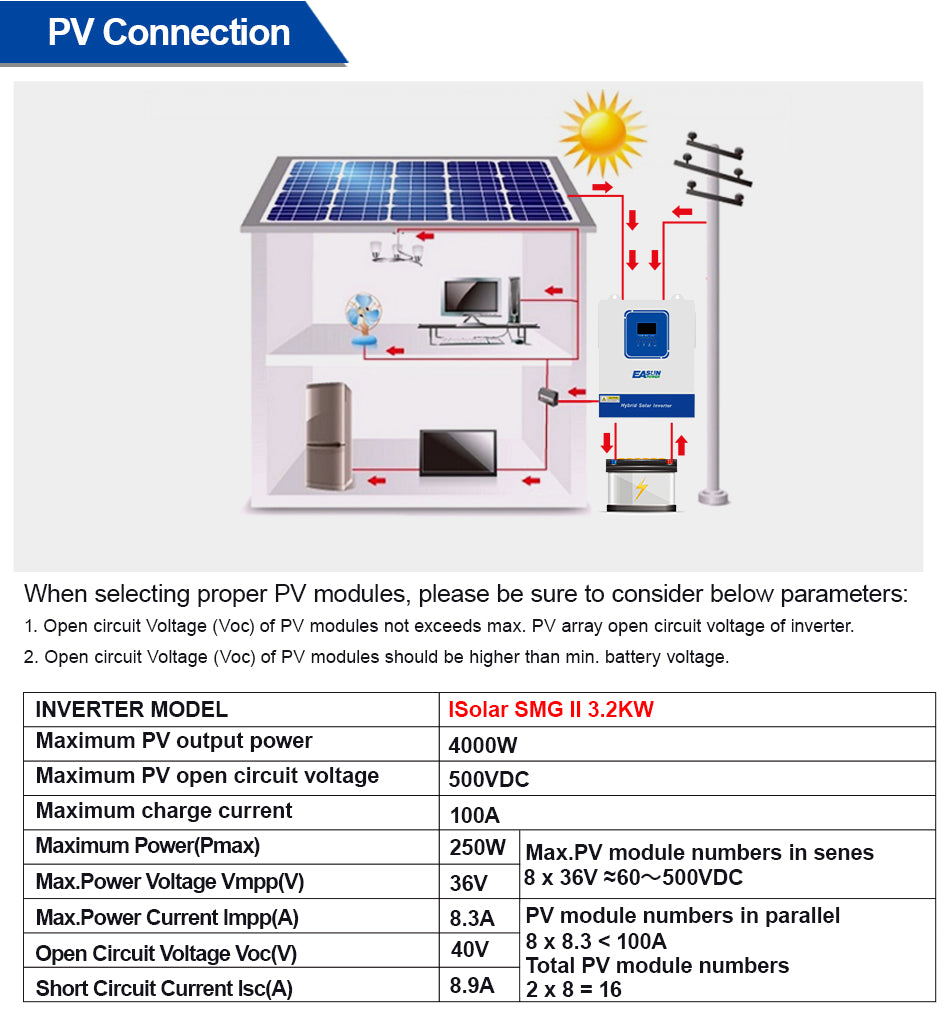

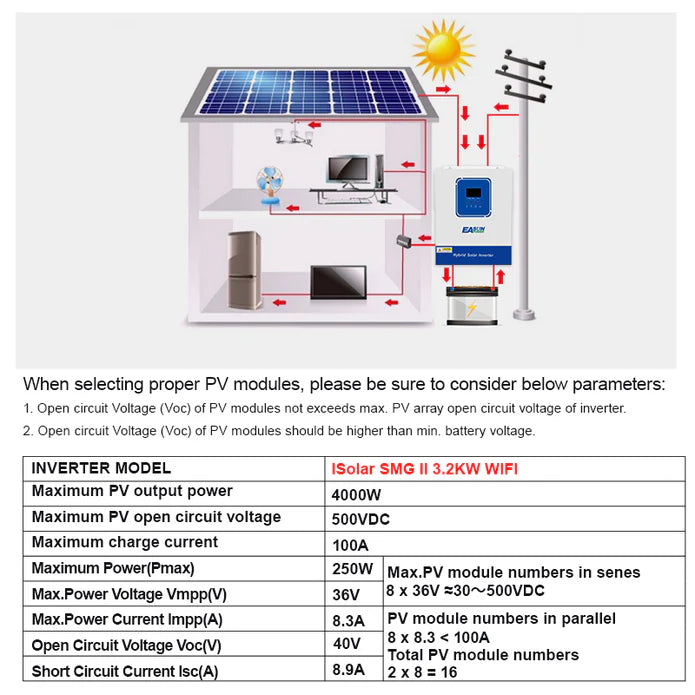

  • PVInput 500Vdc Max
  • Built-in MPPT 60A-100A
  • Detachable dust cover for harsh environment
  • Wifi remote monitoring optional

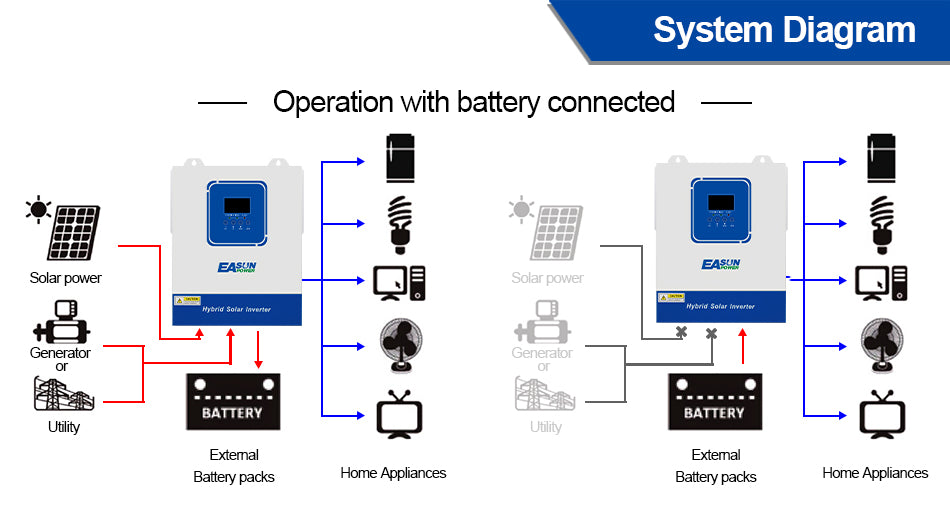

  • Support multiple output priority:UTL,SOL,SBU,SUB
  • EQ function to optimize battery performance and extend lifecycle

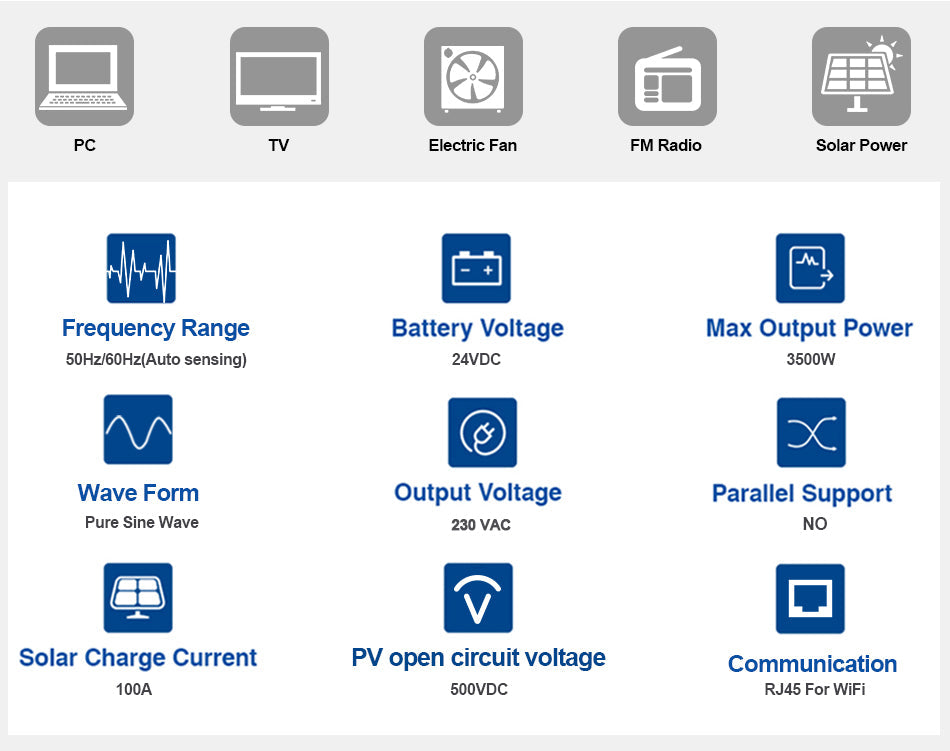

Specification

MODELISolar-SMG-II-3.2KW-24V-Wifi
Capacity3200VA / 3200W
Parallel CapabilityNO
Lithium Battery ActivationNO

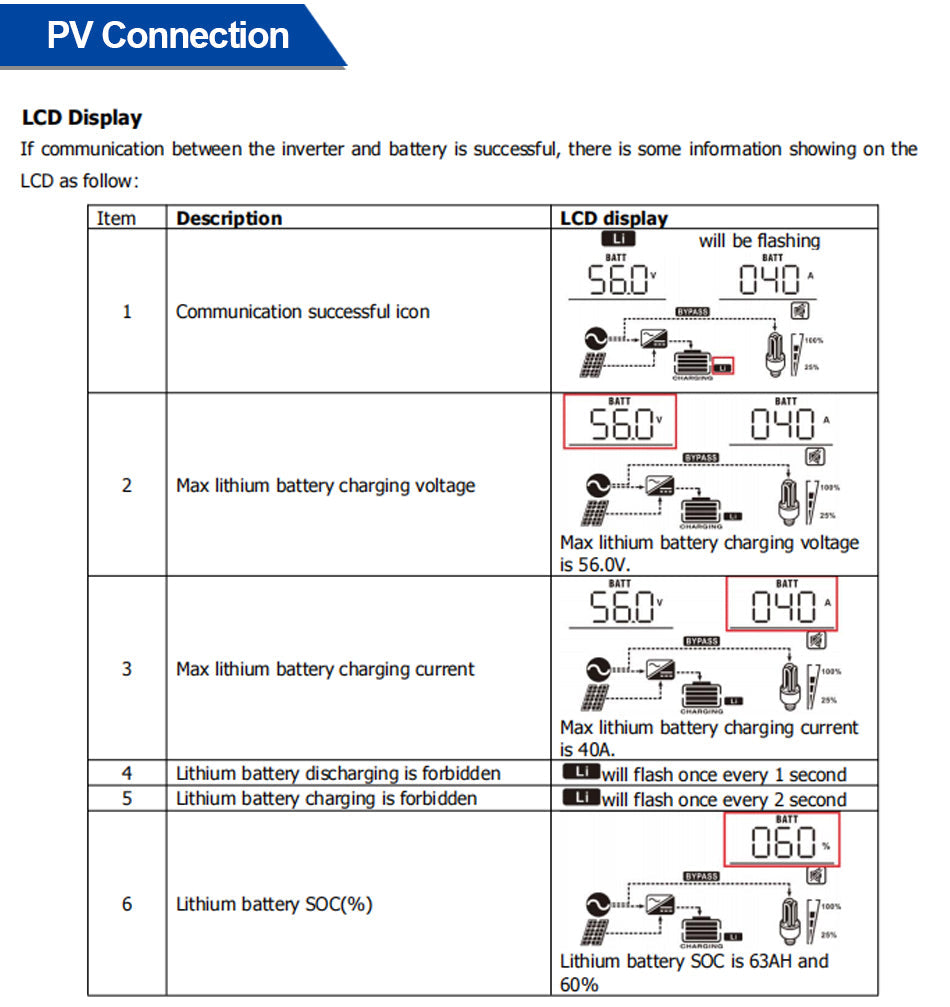

Lithium Battery CommunicationYES
INPUT
Nominal Voltage230VAC
Acceptable Voltage Range170-280VAC (PC); 90-280VAC (Home Appliances)
Frequency50/60Hz (Auto sensing)
OUTPUT
Nominal Voltage220/230VAC ±5%
Surge Power7000VA
Frequency50/60Hz
WaveformPure Sine Wave
Transfer Time10ms (PC) / 20ms (Home Appliances)
Peak Efficiency (PV→INV)96%
Peak Efficiency (Battery→INV)93%
Overload Protection5s ≥ 140% load; 10s @100%~140% load
Crest Factor3:1
Admissible Power Factor0.6~1 (inductive or capacitive)
BATTERY

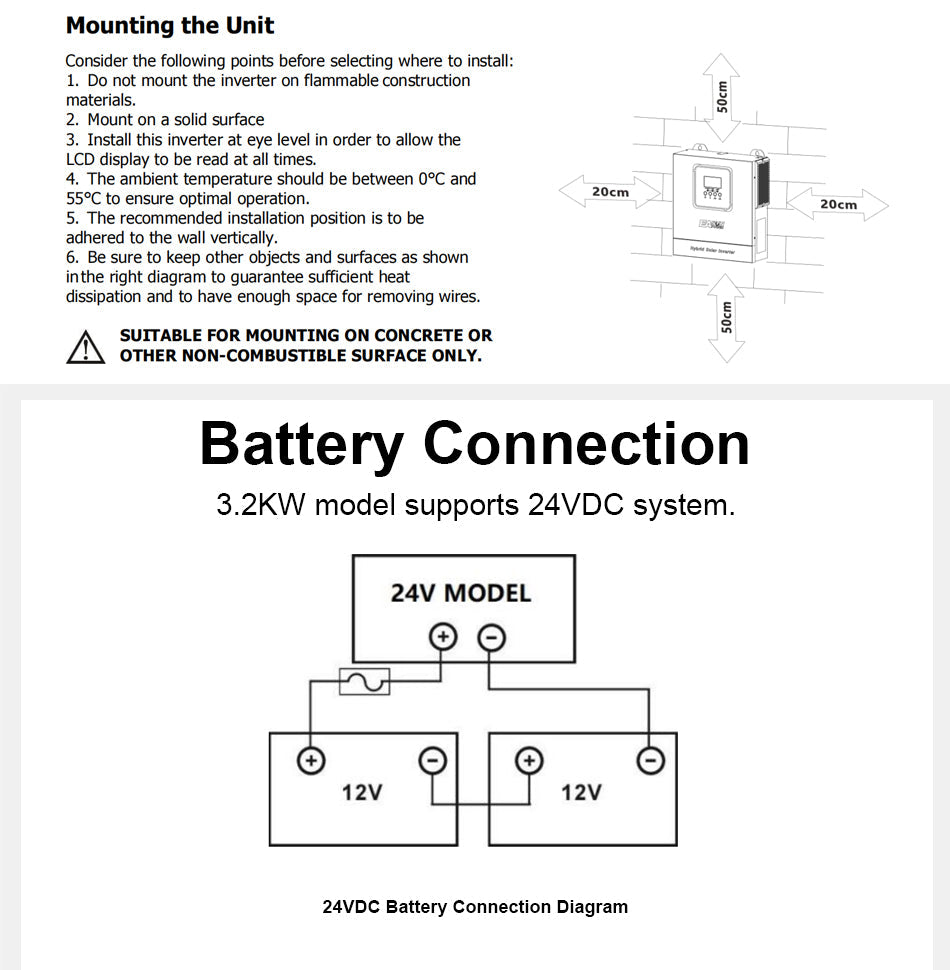

Battery Voltage24VDC
Floating Charge Voltage27VDC
OverCharge Protection32VDC
Charging MethodCC / CV
